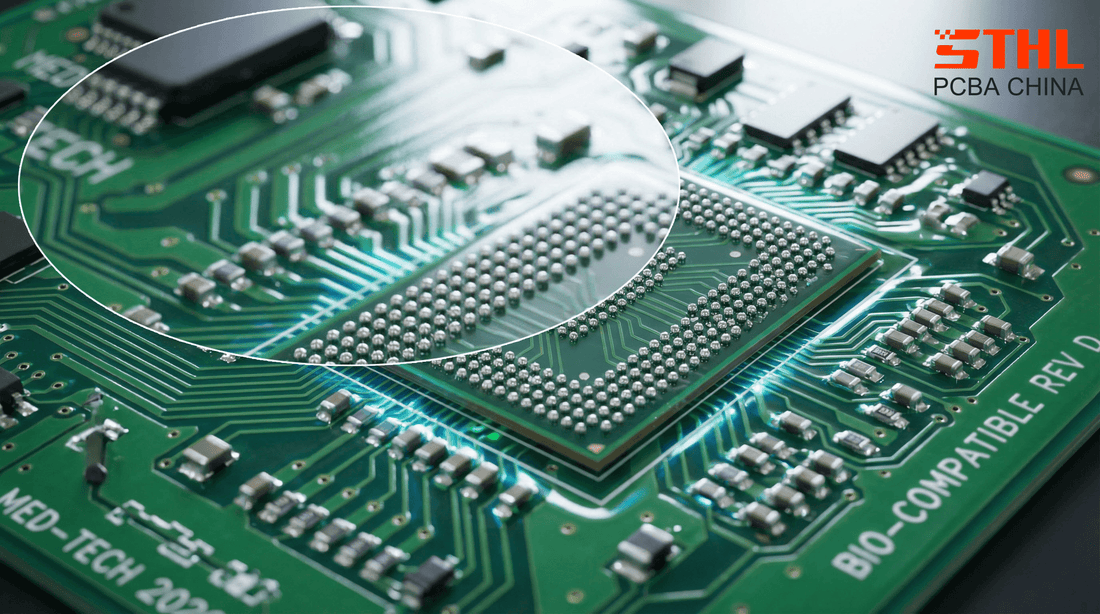

The Critical Role of Fine Pitch BGA Assembly in 2026 Electronics Design

In 2026, fine pitch BGA assembly has become one of the most technically demanding and strategically important processes in advanced electronics manufacturing. As processors, AI accelerators, 5G/6G RF modules, automotive ADAS SoCs, medical imaging FPGAs, and high-end consumer application processors continue to increase in pin count while shrinking in package size, fine pitch BGAs (0.3 mm to 0.4 mm pitch) have moved from niche high-end applications to mainstream requirements.

Fine pitch BGA assembly refers to the precise soldering of Ball Grid Array packages with ball pitches of 0.4 mm or smaller (commonly 0.35 mm and 0.3 mm in 2026). These packages offer exceptional I/O density, superior electrical performance, excellent thermal characteristics, and the smallest possible footprint — but they also introduce significant manufacturing challenges related to solder joint reliability, void control, warpage management, and long-term durability under thermal cycling and mechanical stress.

At STHL, with 18 years of specialized fine pitch BGA assembly experience, we support OEMs and contract manufacturers in the United States, Europe, China, and Southeast Asia with full-turnkey solutions certified to ISO 9001:2015, IATF 16949, ISO 13485, and IPC-A-610 Class 3. Our dedicated fine-pitch production lines routinely achieve average void rates of 8–12%, near-zero head-in-pillow escapes, and first-pass yields above 99% even on the most challenging 0.3 mm pitch BGA designs.

Understanding Fine Pitch BGA Technology in 2026

Evolution of BGA Pitch and Package Trends

The industry has moved rapidly from 0.8 mm and 0.65 mm pitch packages to 0.5 mm, 0.4 mm, and now mainstream 0.35 mm and 0.3 mm pitch BGAs. Larger body sizes (up to 60 mm × 60 mm) with over 3000 balls are increasingly common in AI and high-performance computing applications.

Key trends in 2026 include:

• Copper pillar bumping combined with SAC305 or low-silver alloys
• Stacked-die and chiplet architectures inside BGA packages
• Via-in-pad (VIP) designs with resin fill or copper fill
• Low-warpage substrate materials to combat warpage-induced defects

Why Fine Pitch BGA Assembly Is So Challenging

Smaller pitch means:

• Tighter tolerances for solder paste volume and placement accuracy (±25 μm required)
• Higher risk of bridging and non-wet opens
• Greater sensitivity to package and board warpage
• Increased difficulty in achieving acceptable void rates
• More complex X-ray inspection and defect analysis

STHL has developed proven processes to overcome these challenges through advanced stencil design, vacuum reflow, closed-loop 3D SPI/AOI feedback, and quantitative 3D X-ray analysis.

Working on a design with 0.3 mm or 0.35 mm pitch BGAs? Contact STHL for a free DFM review and fine pitch BGA assembly feasibility assessment — our engineers can help you avoid costly qualification failures.

Critical Challenges in Fine Pitch BGA Assembly and Proven Solutions in 2026

Solder Voiding

Voiding remains the number one reliability concern for fine pitch BGAs.

Primary causes:

• Flux volatiles trapped during reflow
• Insufficient solder volume on center pads
• Package/board warpage mismatch
• Rapid outgassing from solder mask

Best practices at STHL:

• Vacuum reflow (reduces voiding by 50–80%)
• Optimized step-down stencil apertures
• Type-5 or Type-6 solder paste with controlled flux content
• Nitrogen atmosphere to minimize oxidation

STHL consistently achieves average void rates of 8–12% on 0.3–0.4 mm pitch BGAs.

Head-in-Pillow (HIP) Defects

HIP occurs when solder paste does not fully wet to the package ball, creating a weak or intermittent connection.

Detection and prevention:

• 3D SPI verification of paste volume
• Extended soak zone in reflow profile
• Plasma cleaning of boards before assembly
• Low-warpage laminate selection

Non-Wet Opens and Insufficient Collapse

Caused by poor pad wettability, contamination, or warpage pushing balls off pads.

Mitigation:

• Non-solder mask defined (NSMD) pads
• Optimized reflow profile with longer TAL
• Thorough cleaning and surface preparation

Warpage-Induced Bridging and Misalignment

Large body fine pitch BGAs are particularly sensitive to warpage during reflow.

Control measures:

• Balanced copper distribution in PCB stack-up
• Staggered via-in-pad design
• Warpage modeling and shadow moiré measurement
• Reflow profile optimization with slow ramp rates

The table below summarizes the major challenges and STHL’s typical performance in 2026:

Facing challenges with fine pitch BGA voiding or HIP defects? Reach out to STHL — our process engineers can review your current profile and stencil design and provide a free optimization proposal.

Advanced Process Controls for Fine Pitch BGA Assembly in 2026

Solder Paste Printing Optimization

• Ultra-thin stencils (0.08–0.1 mm)
• Step-down apertures for center pads
• 3D SPI with closed-loop feedback to printer

High-Accuracy Component Placement

• Placement accuracy of ±25 μm for 0.3 mm pitch
• Force-controlled placement for thinned packages
• Multi-angle fiducial correction

Reflow Soldering Excellence

• Vacuum reflow ovens for minimal voiding
• Nitrogen atmosphere for reduced oxidation
• Multi-zone profiling with real-time thermocouple feedback

Post-Reflow Inspection & Validation

• 100% 3D X-ray for all fine pitch BGAs
• Quantitative void analysis software
• Automated shear/pull testing for qualification
• Thermal cycling and HALT/HASS for reliability validation

STHL’s closed-loop process control system ensures consistent high-quality fine pitch BGA assembly from prototype through volume production.

Implementing a Robust Fine Pitch BGA Assembly Program

Design Phase – DFM for Fine Pitch Success

• Prefer NSMD pads for better solder volume
• Use via-in-pad with proper fill
• Balance copper distribution to minimize warpage
• Specify low-warpage substrate materials

Process Qualification

• Full reflow profile development with thermocouples
• Void and IMC analysis on X-ray cross-sections
• Accelerated life testing (thermal cycling, HAST)

Production Monitoring

• Real-time SPC on SPI volume, placement offset, and void rate
• Weekly Pareto analysis of defect types
• 8D root-cause analysis for any escapes

STHL’s disciplined approach ensures that every fine pitch BGA assembly meets the highest reliability standards.

Ready to achieve reliable fine pitch BGA assembly for your next design? Contact STHL today — our team is ready to review your layout, optimize your process parameters, and deliver the quality your product demands.

Partner with STHL for Expert Fine Pitch BGA Assembly in 2026

In 2026, fine pitch BGA assembly is one of the most technically challenging yet strategically important processes in electronics manufacturing. Success requires deep process knowledge, advanced equipment, rigorous inspection, and continuous improvement discipline.

STHL has assembled hundreds of thousands of fine pitch BGAs — from 0.3 mm pitch AI accelerators to large-body automotive SoCs — achieving consistently low void rates, zero HIP defects in production, and long-term reliability validated by thermal cycling and field data.

Your high-pin-count or high-reliability design deserves world-class fine pitch BGA expertise.

Contact STHL today — let our team review your BGA package and PCB layout, optimize your stencil and reflow profile, and deliver the assembly quality your product demands.​

We’re ready to help you achieve first-pass success — and long-term performance you can trust.
