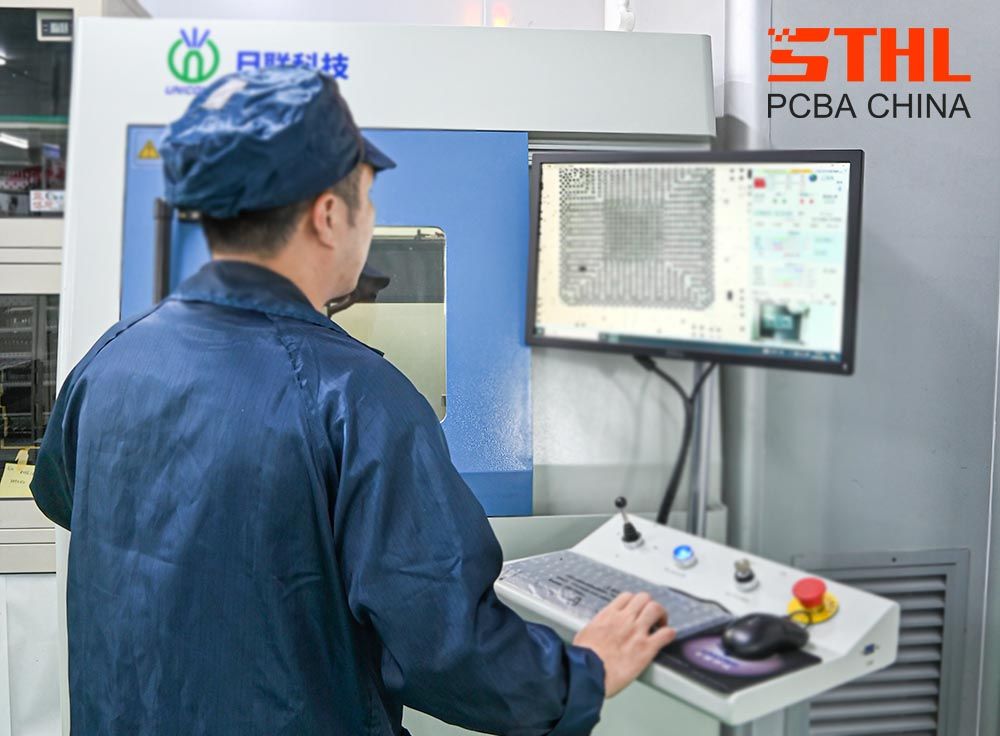

The Enduring Importance of In-Circuit Testing in 2026 Electronics Production
In 2026, as electronic products become increasingly complex with higher component density, finer pitches, advanced HDI structures, and more integrated mixed-signal functions, In-Circuit Testing (ICT) remains one of the most critical quality assurance processes in PCBA manufacturing. While Automated Optical Inspection (AOI) and X-ray inspection verify placement and solder joint quality, and Functional Circuit Testing (FCT) confirms overall system behavior, ICT provides the deepest, most precise verification of individual component values, connectivity, and basic functionality at the board level.
ICT uses a bed-of-nails fixture or flying probe system to make direct electrical contact with test points on the assembled PCB. It measures resistance, capacitance, inductance, diode polarity, transistor gain, and continuity across thousands of nodes in seconds. This allows early detection of manufacturing defects such as wrong component values, missing components, reversed polarity, open circuits, short circuits, and marginal solder joints before they reach functional test or the end customer.
For industries with zero-tolerance for field failures — automotive (IATF 16949), medical (ISO 13485), aerospace, and industrial automation — ICT is often a mandatory step in the quality plan. Even in high-volume consumer electronics, ICT significantly reduces scrap, rework, and warranty costs by catching defects at the earliest possible stage.
At STHL, with 18 years of high-reliability PCBA manufacturing experience, we have developed sophisticated In-Circuit Testing programs for hundreds of complex boards. Serving OEMs in the United States, Europe, China, and Southeast Asia, STHL is certified to ISO 9001:2015, IATF 16949, ISO 13485, and IPC-A-610 Class 3. Our ICT capabilities include both bed-of-nails fixtures for high-volume production and flying probe systems for quick-turn prototypes, delivering high fault coverage and excellent correlation to final product performance.
How In-Circuit Testing Works in 2026
Bed-of-Nails ICT
The traditional and still widely used method involves a custom fixture with spring-loaded pogo pins that contact designated test points on the PCB. When the board is pressed onto the fixture, the system performs rapid electrical measurements across the entire circuit.
Advantages:
- Very fast test time (typically 5–30 seconds per board)
- High test point density
- Excellent for high-volume production
Disadvantages:
- High fixture cost and lead time
- Limited access on ultra-high-density HDI boards
- Probe wear and maintenance requirements
Flying Probe ICT
Moving probes contact test points sequentially without a dedicated fixture.
Advantages:
- No fixture cost — ideal for NPI and low-volume runs
- Excellent access on high-density and HDI boards
- Easy program changes for design iterations
Disadvantages:
- Slower test time (1–5 minutes typical)
- Limited current-carrying capacity for power testing
STHL maintains both technologies and selects the optimal method based on volume, complexity, and customer requirements.
Key Measurements Performed During ICT
- Resistance, capacitance, inductance
- Diode and transistor polarity/gain
- Continuity and open/short detection
- Power rail voltage and current draw
- Basic functional checks (e.g., oscillator frequency, reset signals)
Modern ICT systems in 2026 integrate boundary scan (JTAG) to improve coverage on high-density digital boards where physical probe access is limited.
Need high fault coverage for your complex PCBA? Contact STHL — our test engineering team can design a customized In-Circuit Testing strategy that maximizes defect detection while optimizing test time and cost.

Benefits of Implementing Robust In-Circuit Testing in 2026
Early Defect Detection
ICT catches manufacturing defects at the board level before functional testing or shipment, significantly reducing scrap and rework costs.
Improved First-Pass Yield
By identifying issues early, ICT helps manufacturers fine-tune processes (solder paste printing, placement, reflow) and achieve higher overall yield.
Reduced Field Failure Rates
Detecting marginal components or poor solder joints prevents intermittent failures that could occur weeks or months after deployment.
Regulatory Compliance Support
For medical (ISO 13485), automotive (IATF 16949), and aerospace applications, ICT provides objective, documented evidence of board-level quality.
Cost Efficiency
Early detection is always cheaper than later-stage rework or field returns. ICT typically offers the best cost-benefit ratio among all test methods.
In-Circuit Testing vs Other Test Methods in 2026
The table below compares ICT with other common PCBA test methods:
| Test Method | Primary Purpose | Speed | Coverage | Fixture Cost | Best Suited For |
|---|---|---|---|---|---|
| In-Circuit Testing | Component value & connectivity verification | Fast (bed-of-nails) | High (analog + digital) | High | Medium-high volume, complex mixed-signal boards |
| AOI | Placement & solder joint appearance | Very fast | Surface only | Low | All production stages |
| X-ray | Hidden BGA/LGA/QFN joints | Medium | Hidden joints only | Low | BGA-heavy designs |
| Functional Testing | Full system functionality | Medium | System level | Medium-High | Final verification |
STHL strategically combines ICT with AOI, X-ray, and FCT to achieve optimal test coverage and efficiency for every customer project.
Unsure which test strategy is right for your product? Reach out to STHL — our test development engineers can analyze your design and recommend the most effective combination of In-Circuit Testing and complementary methods.
Best Practices for Implementing In-Circuit Testing in 2026
Early Testability Design (Design for Test – DFT)

- Add sufficient test points during schematic and layout design
- Ensure probe access on critical nets
- Consider boundary scan chains for high-density digital sections
Fixture Design and Maintenance
- Use high-quality pogo pins and robust fixture materials
- Implement regular probe cleaning and replacement schedules
- Design fixtures with quick-change mechanisms for high-mix production
Program Development and Validation
- Use CAD data for accurate netlist generation
- Validate test coverage with fault simulation tools
- Perform correlation studies between ICT and functional test results
Data Collection and Continuous Improvement
- Log all test results with serial number traceability
- Analyze Pareto charts of common failure modes
- Feed data back into process improvement (SPI, placement, reflow)
STHL’s test engineering team follows these best practices rigorously, ensuring high coverage and continuous yield improvement.
Challenges and Solutions in In-Circuit Testing for 2026 Designs
Limited Probe Access on High-Density HDI Boards
Solution: Combine ICT with boundary scan and strategic test point placement during design.
High Fixture Cost for Low-Volume Projects
Solution: Use flying probe ICT for prototypes and NPI, transitioning to bed-of-nails for volume.
Marginal or Intermittent Failures
Solution: Add stress conditions (temperature, voltage variation) during ICT where possible.
Data Overload and Analysis
Solution: Implement automated SPC and AI-assisted defect classification.
STHL has successfully addressed these challenges for numerous complex medical, automotive, and industrial projects.
Facing test coverage or fixture challenges with your current PCBA? Contact STHL — our experienced test team can help you optimize your In-Circuit Testing strategy for better coverage and lower cost.
Why STHL Is the Preferred Partner for In-Circuit Testing in 2026
STHL offers:
- Both bed-of-nails and flying probe ICT capabilities
- Deep experience with complex mixed-signal and high-density boards
- Full integration with AOI, X-ray, and functional testing
- Comprehensive test program development and validation
- Strict traceability and documentation for regulatory compliance
Our customers benefit from higher first-pass yield, lower field failure rates, reduced warranty costs, and faster time-to-market.
Choose STHL for Reliable In-Circuit Testing and PCBA Excellence
In 2026, In-Circuit Testing remains a cornerstone of effective PCBA quality assurance. When implemented correctly, it catches defects early, improves yield, reduces costs, and provides the objective data needed for regulatory compliance and continuous improvement.
