A single field failure in an assembled PCB can cost ten to a hundred times more than catching that same defect during production. For a consumer gadget, that means warranty replacements and brand damage. For a medical device or automotive control module, it means recalls, regulatory penalties, and potential harm to end users. Yet many hardware teams treat quality control as a checkbox rather than a strategy—something the contract manufacturer handles at the end of the line, after the real work is done.

That mindset is expensive. Quality control in PCB assembly is not a single inspection station. It is a multi-layered system of prevention, detection, and feedback that spans the entire manufacturing process, from solder paste printing through final functional test. Skip a layer, and defects propagate downstream—becoming harder to find and more costly to fix at each step.

This guide walks through every major inspection and testing method used in modern PCBA manufacturing, explains what each one catches and misses, and shows how to build a testing strategy that matches your product's risk profile. Whether you are bringing up a quick-turn prototype or scaling to medium-volume production, understanding this testing stack is essential to shipping reliable hardware.

The Quality Control Pyramid

Effective PCBA quality control follows a pyramid structure. At the base are process controls that prevent defects from forming in the first place. Above that sits inline inspection, catching issues immediately after a process step while correction is still cheap. Near the top are end-of-line electrical and functional tests that verify the board works as intended. At the apex sits environmental and reliability testing, ensuring the product survives its intended service life.

Prevention vs Detection

The cheapest defect is the one that never happens. Prevention focuses on process engineering—calibrating screen printers, optimizing reflow profiles, controlling humidity in the SMT line, validating stencils, and running design-for-manufacturing (DFM) checks before production begins. Detection, on the other hand, identifies defects after they form. Both are necessary, but the ratio matters. Mature manufacturers invest heavily in prevention because every dollar spent on process control saves five to ten dollars in downstream inspection and rework.

A common mistake is treating detection as a substitute for prevention. Running AOI after reflow does not fix a misaligned stencil or an out-of-spec paste volume—it just finds the damage. The strongest quality programs balance both, feeding defect data from inspection back into process tuning.

Solder Paste Inspection (SPI)

Solder paste printing is the single most critical process step in surface mount assembly. Industry data consistently shows that 60–70% of all solder defects—shorts, opens, insufficient solder, head-in-pillow, and graping—originate at the paste printing stage. If your paste deposit is wrong, nothing downstream can fully compensate.

SPI is a 3D inspection system that measures solder paste deposits immediately after screen printing, before components are placed. Using structured light or laser triangulation, SPI captures the volume, area, height, and shape of every paste deposit on the board.

How SPI Works

The SPI machine scans the board after printing and compares each paste deposit against a reference. It measures:

SPI systems flag deposits that fall outside acceptable tolerances—typically ±20% of target volume for standard pads, tighter for fine-pitch and BGA. Boards failing SPI can be cleaned and reprinted before any components are placed, eliminating the cost of placing parts onto defective paste.

Why 60-70% of Solder Defects Originate at Paste Printing

The solder paste printing process involves a stencil, a squeegee, paste rheology, board support, and separation speed—each a variable that can drift. Stencil apertures can clog with dried paste. Squeegee blades wear and change angle. Paste viscosity shifts as temperature and humidity change. Board warpage during printing alters the gap between stencil and pad.

Because solder paste deposition directly determines the final solder joint, any error here propagates through reflow. An underprinted BGA pad becomes an open. An overprinted fine-pitch pad becomes a bridge. SPI catches these problems at the source, before value is added through component placement and reflow.

STHL integrates 3D SPI on all SMT lines, with statistical process control charts monitoring paste transfer efficiency in real time. This allows process engineers to identify drift and correct stencil cleaning or squeegee parameters before defects form—not after a board fails AOI downstream.

Automated Optical Inspection (AOI)

AOI uses high-resolution cameras and sophisticated image-processing algorithms to inspect solder joints, component placement, and board cosmetics after soldering. It is the workhorse of PCBA inspection—fast, non-contact, and capable of catching a broad range of visible defects.

Pre-Reflow vs Post-Reflow AOI

Pre-reflow AOI inspects boards after component placement but before reflow. It catches placement errors: missing components, shifted parts, wrong polarity, wrong component values, and tombstoning before the board enters reflow. Catching these issues pre-reflow allows rework at the placement stage, which is faster and less risky than reworking after solder joints have formed.

Post-reflow AOI inspects the final solder joints. It detects solder bridges, insufficient solder, solder balls, misaligned components, lifted leads, andBill-of-materials errors (wrong parts). Post-reflow AOI is where the majority of solder joint inspection happens.

The strongest inspection strategies use both. Pre-reflow AOI catches placement problems cheaply; post-reflow AOI verifies solder joint quality. Together, they can achieve defect coverage of 85–95% for visible defects.

What AOI Catches and What It Misses

AOI excels at:

AOI cannot detect:

This is why AOI is one layer in the stack, not the whole strategy. For boards with BGAs, QFNs, or hidden joints, X-ray inspection and electrical testing must fill the gaps.

X-Ray Inspection

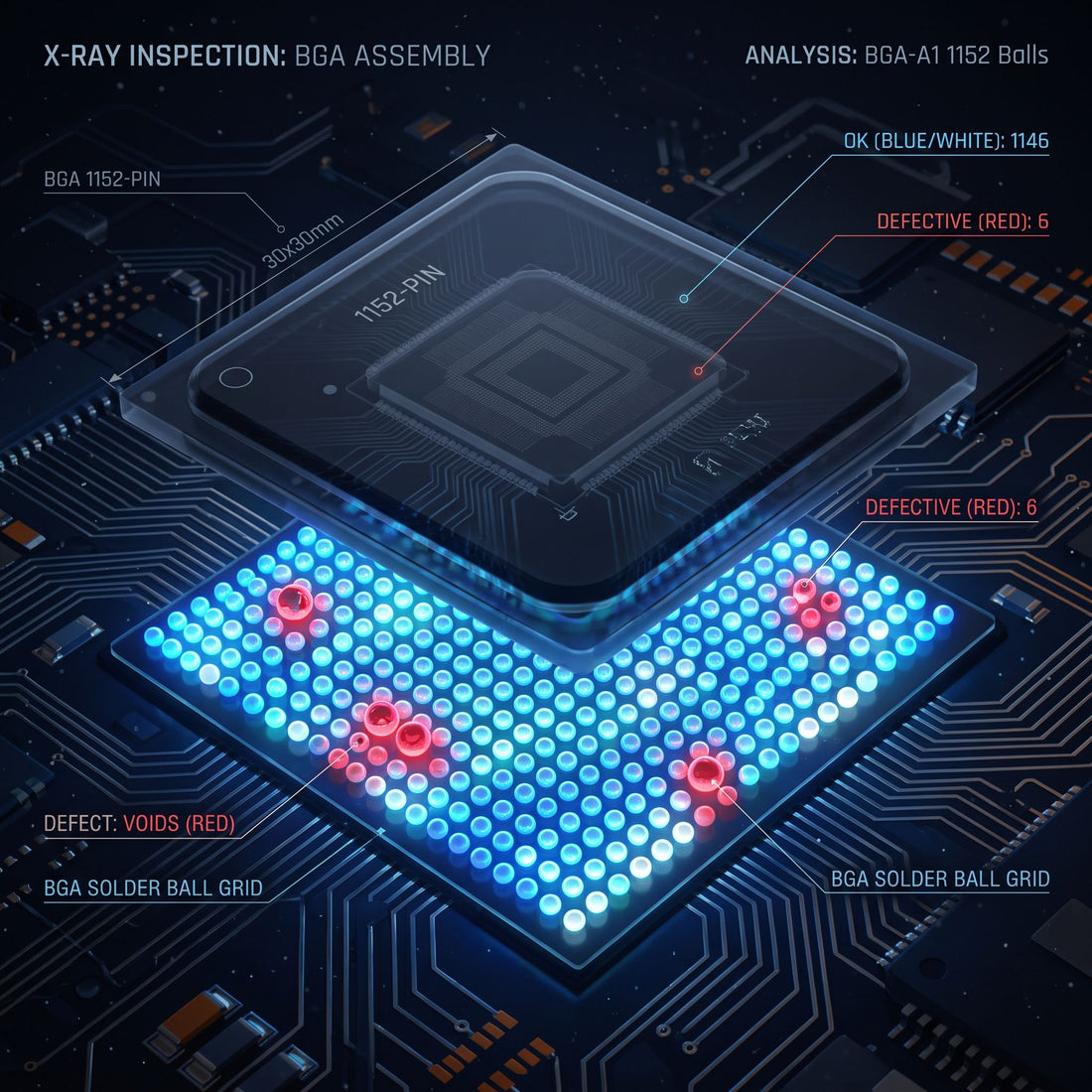

X-ray inspection sees what AOI cannot. By passing X-rays through the board and capturing the shadow image of internal structures, X-ray systems reveal solder joints hidden under packages—BGAs, QFNs, LGAs, and through-hole barrels. For any board with area-array packages, X-ray is not optional. It is the only way to verify those joints.

Why BGA Requires X-Ray

A BGA package has dozens to thousands of solder balls underneath, completely invisible from above once placed. There is no optical path to inspect these joints. X-ray penetrates the silicon and package material, rendering the solder balls as grayscale images where denser material (solder) appears darker or lighter depending on system configuration.

X-ray inspection verifies:

For fine-pitch BGA (0.3mm pitch and below), X-ray is even more critical. Joint sizes are tiny, and visual cues are minimal. Only high-resolution X-ray can confirm proper joint formation.

Void Detection and Threshold

Voids are trapped gas pockets inside a solder joint. They reduce mechanical strength and can cause thermal fatigue failures over time. X-ray is the primary tool for detecting and measuring voids.

Industry standards define acceptable void thresholds:

For automotive, medical, and aerospace applications, STHL applies stricter void limits—often ≤20%—per customer requirements. Void data is tracked per BGA location and fed back to reflow profile tuning to reduce gas entrapment.

2D X-ray is standard for most applications. 2.5D and 3D X-ray (CT) systems provide layered imaging for complex assemblies, separating overlapping joints in stacked packages. STHL's 2.5D X-ray capability handles fine-pitch BGA inspection with the resolution needed for 0.3mm pitch devices.

In-Circuit Testing (ICT)

Where AOI and X-ray verify the physical quality of solder joints, ICT verifies the electrical integrity of individual components and circuits. ICT uses a bed-of-nails fixture or flying probes to access test points on the board, measuring component values, checking for shorts and opens, and verifying that each part is present and correct before functional testing.

Bed-of-Nails vs Flying Probe

Bed-of-nails ICT uses a custom fixture with spring-loaded pins that contact test points across the board simultaneously. The fixture is expensive—3,000 to 15,000 depending on density and complexity—and takes weeks to fabricate. But once built, test cycle time is fast: 30 seconds to 2 minutes per board. This makes bed-of-nails ideal for medium-volume production where the fixture cost amortizes across thousands of boards.

Flying probe testing uses a small number of movable probes (typically 4 to 8) that travel to each test point sequentially. No custom fixture is required. Setup is software-driven and fast. But test cycle time is long—5 to 20 minutes per board. Flying probe is ideal for prototypes, low-volume production, and boards where test point access is limited.

The choice between the two comes down to volume, board complexity, and lifecycle stage. For quick-turn prototypes, flying probe provides flexibility. For production ramps, bed-of-nails delivers speed. Many programs use flying probe at NPI (new product introduction) and transition to bed-of-nails at volume.

Test Coverage Calculations

ICT test coverage is the percentage of component faults detectable by the test, expressed as a percentage. It is calculated using a fault coverage analysis that maps each test point against the components it can isolate.

A well-designed board with comprehensive test point access can achieve 85–95% ICT coverage. Poorly designed boards with limited test points may achieve only 50–60%. This is why DFM for testability—adding test pads, breaking feedback loops, and providing isolation resistors—matters early in the design process.

Coverage gaps typically include:

For automotive and medical boards requiring high reliability, STHL works with customers during design review to maximize test point access and achieve coverage targets of 90% or higher.

Ready to optimize your board for testability and ensure defect-free production? Contact STHL's engineering team​ today for a free DFM and test strategy review.

Functional Testing (FCT)

Functional testing verifies that the assembled board performs as intended—powering up, executing firmware, communicating over its interfaces, and producing correct outputs. Where ICT checks individual components, FCT checks the system. It is the final gate before a board ships.

Designing Effective Functional Tests

An effective functional test exercises the board's circuits the way the end product will, but in a controlled, automated environment. Key principles:

FCT is often the most custom aspect of testing because every board has unique functional requirements. STHL develops custom FCT fixtures and test scripts in collaboration with customers, ensuring coverage of critical functions before shipment.

Boundary Scan Testing

Boundary scan, defined by the IEEE 1149.1 standard (JTAG), enables testing of digital interconnections between ICs without physical probe access. Boundary scan-capable devices include test access ports (TAP) and boundary scan cells at each I/O pin. By shifting test patterns through the scan chain, the tester can verify net continuity—detecting opens, shorts, and stuck pins—on connections that have no accessible test points.

Boundary scan is especially valuable for:

When designed in early, boundary scan can significantly increase electrical test coverage and reduce reliance on physical test points. STHL supports boundary scan integration and can help customers select JTAG-enabled components during design review.

Burn-In Testing & Environmental Stress Screening

Not all defects are immediately detectable. Some components carry latent defects—manufacturing imperfections that cause early-life failures under stress. Burn-in and environmental stress screening accelerate these failures so they occur in the factory, not in the field.

When Burn-In Is Necessary

Burn-in is not standard for every product. It adds cost and cycle time. Burn-in is justified when:

For consumer products with moderate reliability needs, burn-in is often skipped in favor of robust inline inspection and FCT. For mission-critical products, burn-in is a design requirement.

HALT vs HASS

HALT (Highly Accelerated Life Test) is a design qualification test, not a production test. It subjects prototypes to increasing stress levels—thermal cycling, vibration, and combined environments—until failure occurs. The goal is to find design weaknesses and operating margins before production. HALT typically runs during NPI and is not repeated for each production lot.

HASS (Highly Accelerated Stress Screen) is a production screen derived from HALT results. It applies stress levels below the destruct limits identified in HALT, catching process-induced defects without damaging good product. HASS is typically run on 100% of production units for high-reliability products, or on a sample basis for others.

The distinction matters: HALT validates the design. HASS screens production. Skipping HALT means running HASS without knowing the product's stress margins—risky and potentially damaging to good product.

Building a Cost-Effective Testing Strategy

More testing is not always better. Over-testing wastes time and money; under-testing ships defective product. The goal is to match test coverage to product risk—spending inspection dollars where failures are most costly.

Matching Test Coverage to Product Risk

Consider three dimensions when designing a test strategy:

A risk-based approach allocates testing investment where it matters. Low-risk consumer boards may skip X-ray and rely on AOI + FCT. High-risk automotive boards may require SPI + AOI + X-ray + ICT + FCT + HASS. There is no one-size-fits-all answer—only an optimized strategy for each product.

STHL's Multi-Stage Testing Approach

STHL operates a multi-stage testing approach across all SMT lines, configured to each customer's product risk profile:

Every board ships with a test report documenting coverage, defect data, and yield. This traceability supports root-cause analysis and continuous improvement across production lots.

Certifications matter because they verify the system works. STHL holds ISO 9001, IATF 16949, and ISO 13485 certifications, along with IPC-A-610 Class 2/3 soldering standards compliance. These are not certificates on a wall—they are audit-verified process controls that ensure consistent quality across every lot.

Ready to build a testing strategy that matches your product's risk profile? Contact STHL's engineering team​ for a free test coverage analysis and production quote.

Conclusion

A single field failure can cost ten times more than the entire production run's testing budget. In regulated industries—medical, automotive, aerospace—a missed defect doesn't just cost money; it costs lives. IPC-A-610 Class 3 isn't a luxury for these products. It's the floor. If your manufacturing partner can't show you their test coverage matrix, their defect pareto data, and their corrective action history, you're flying blind. Don't.

Quality control is not a station at the end of the line. It is a system woven through every process step—paste printing, placement, reflow, inspection, electrical test, functional verification, and environmental screening. Each layer catches what the previous layer missed. Removing any layer shifts defect discovery downstream, where costs compound and consequences grow.

The boards that fail in the field are not the ones that were never tested. They are the ones where testing was treated as a formality—where AOI was run but the results were ignored, where X-ray was skipped to save ten minutes, where ICT coverage was accepted at 60% because the fixture was too expensive. The cost of those decisions is not paid at production. It is paid at recall, at warranty, at litigation, at the loss of customer trust that took years to build.

Test coverage data should be available for every lot. Defect pareto charts should drive process improvement. Corrective actions should be documented and verified. If your contract manufacturer treats this information as proprietary or cannot produce it on demand, that is a warning sign. A transparent testing program is not a competitive risk—it is proof of competence.

In 2026 and beyond, the products that succeed in the market are the ones that are tested like lives depend on them—because in many cases, they do. Build your testing strategy with the same rigor you build your product. And partner with a manufacturer that can show you the data.
