Why Conformal Coating Remains Critical in High-Reliability Electronics

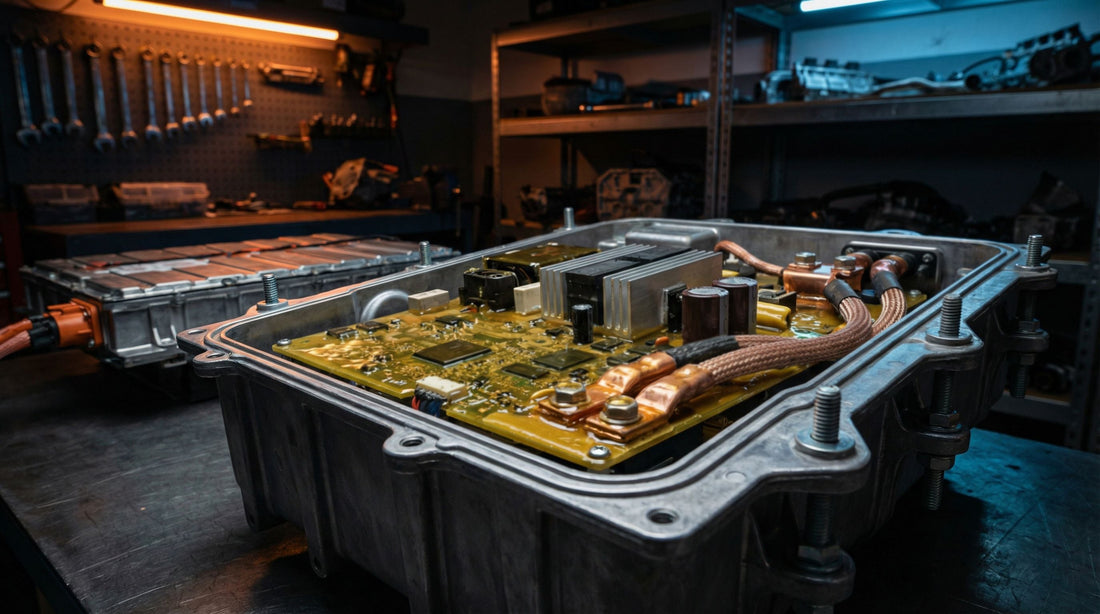

In 2026, as electronic assemblies are deployed in increasingly harsh environments — automotive under-hood, industrial outdoor IoT, renewable energy inverters, medical wearables, aerospace avionics, and 5G/6G outdoor small cells — conformal coating continues to be one of the most effective methods for protecting PCBA from moisture, dust, chemicals, salt spray, vibration-induced micro-cracks, and dendritic growth (electrochemical migration).
At STHL, with 18 years of advanced PCBA manufacturing experience, we apply conformal coatings daily across a wide range of formulations and application methods to meet IPC-CC-830, MIL-I-46058C, IEC 61086, UL 94 V-0, and customer-specific automotive (AEC-Q100), medical (ISO 13485), and aerospace (AS9100) requirements. Serving clients in the United States, Europe, China, and Southeast Asia, STHL combines automated selective coating lines, robotic dispensing cells, UV-cure systems, and full environmental testing to deliver reliable, long-life PCBAs even in the most demanding conditions.
Primary Functions & Protection Mechanisms of Conformal Coating
Conformal coatings create a thin (25–250 μm) polymeric barrier that:
- Prevents moisture ingress and electrochemical migration (CAF / dendritic growth)
- Shields against dust, dirt, salt spray, and corrosive gases (H₂S, SO₂, NOₓ)
- Reduces the risk of short circuits caused by condensation or splashed liquids
- Dampens mechanical vibration and provides partial shock absorption
- Improves dielectric strength between closely spaced high-voltage traces
- Mitigates tin whisker growth on pure-tin finishes
Key Environmental Threats Addressed in 2026
- High-humidity + pollution — coastal 5G base stations, solar inverters
- Automotive fluids & temperature cycling — EV battery controllers, ADAS modules
- Medical sterilization & body fluids — wearable monitors, implantable electronics
- Industrial chemicals & particulates — factory automation, mining equipment
Most Widely Used Conformal Coating Types in 2026
The table below compares the dominant coating chemistries currently used in high-reliability PCBA production:
| Coating Type | Typical Thickness | Temperature Range | Key Strengths | Limitations | Typical Applications |
|---|---|---|---|---|---|
| Acrylic (AR) | 25–75 μm | -65 °C to +125 °C | Easy rework, low cost, good moisture resistance | Poor solvent & fuel resistance | Consumer, general industrial |
| Silicone (SR) | 50–200 μm | -65 °C to +200 °C | Excellent flexibility, high-temp & vibration resistance | Difficult to rework, poor abrasion resistance | Automotive, aerospace, outdoor telecom |
| Urethane (UR) | 50–150 μm | -65 °C to +125 °C | Good chemical resistance, strong adhesion | Moderate rework difficulty | Industrial controls, medical devices |
| Parylene (XY) | 5–25 μm | -200 °C to +150 °C | Ultra-thin, pinhole-free, excellent barrier | Very expensive, specialized equipment required | Medical implants, aerospace, high-reliability |
| Epoxy (ER) | 75–200 μm | -55 °C to +150 °C | Superior chemical & abrasion resistance | Very hard to rework, rigid | Harsh industrial, oil & gas |
STHL maintains qualified processes for all five major coating families, including vapor-deposited Parylene C & N and selective robotic dispensing of UV-curable silicones and urethanes.
Application Methods Commonly Used in 2026 Production
Selective Robotic Dispensing
Most common method in 2026 for high-mix and high-reliability boards. STHL uses Nordson ASYMTEK and Musashi dispensing cells with vision-guided needle positioning for precise coverage of selected areas while keeping connectors, test points, and grounding pads uncoated.
Automated Spray Coating
Cost-effective for medium-to-high volume. Electrostatic or ultrasonic spray systems provide uniform thin films but require masking of no-coat zones.
Dip Coating
Still used for low-cost consumer products with simple board layouts. Full immersion limits reworkability.
Vapor Deposition (Parylene)
Specialized process for ultra-thin, truly conformal coverage on complex geometries. STHL partners with certified Parylene applicators for medical and aerospace programs.
Manual Brush / Spray
Reserved for very low-volume prototypes or field rework. STHL minimizes manual coating to maintain consistency.
Need expert coating application for your next high-reliability project? STHL’s selective dispensing and Parylene capabilities deliver precision protection. Contact us for a free process recommendation.
Critical Design Rules for Successful Conformal Coating
Keep-Coat & No-Coat Zones
Clearly define areas that must remain uncoated (connectors, test points, grounding pads, switches, LEDs, RF antennas). Use 3D keep-out zones in CAD tools.
Masking Strategy
High-temperature polyimide tape, liquid peelable mask, or temporary solder mask for selective protection. STHL recommends UV-curable temporary masks for automated lines.
Component Height & Shadowing
Tall components (>6 mm) create shadowing; selective dispensing nozzles must access all critical areas. STHL uses multi-axis robotic dispensing with ±25 μm repeatability.
Coating Thickness Control
Typical target 50–150 μm; too thin compromises protection, too thick causes stress on fine-pitch leads and solder joints.
Curing & Inspection
UV-cure coatings require proper wavelength and intensity. Full cure verification via hardness testing or solvent rub. Post-coat visual & UV-fluorescence inspection confirms coverage.
Common Conformal Coating Defects & Prevention
| Defect | Typical Root Cause | Prevention Strategy |
|---|---|---|
| Orange peel / bubbles | Trapped air during spray or dispensing | Degassing of coating material, slower dispense |
| Dewetting / fisheyes | Surface contamination (flux residue, oil) | Plasma cleaning or solvent pre-wash |
| Cracking / delamination | Excessive thickness or thermal expansion mismatch | Controlled thickness, compatible primer |
| Uncoated areas | Shadowing or poor masking | Multi-axis robotic dispensing, verified masking |
| Excess coating on contacts | Overspray or poor masking | Precise selective dispensing + UV inspection |
STHL’s coating process validation includes cross-section analysis and adhesion testing to ensure long-term reliability.
Concerned about coating reliability in harsh environments? STHL’s engineering team can recommend the optimal coating type and process for your application. Contact us for expert guidance.
Why STHL Is the Preferred Partner for Conformal Coated PCBAs in 2026
- 18 years of proven coating experience across acrylic, silicone, urethane, epoxy, and Parylene
- Automated selective dispensing with Nordson ASYMTEK and Musashi systems
- Parylene C & N deposition partnerships for medical/aerospace programs
- Full environmental qualification — thermal cycling, humidity bias, salt fog, vibration
- Traceability & documentation — coating batch, thickness reports, cure verification
- Fast NPI & prototyping — coated prototypes in 7–10 days
Whether you require selective silicone coating for automotive ECUs, Parylene for implantable medical devices, or urethane for outdoor industrial IoT, STHL delivers repeatable, high-reliability results.
Build Electronics That Withstand the Elements
In 2026, conformal coating is no longer optional for many high-reliability and outdoor applications — it is a critical reliability enhancer. Choosing the right coating chemistry, application method, and manufacturing partner directly impacts product lifespan, warranty costs, and field failure rates.
STHL combines deep process knowledge, advanced selective coating technology, full environmental testing, and a relentless focus on quality to deliver PCBAs that perform reliably in the harshest conditions.
