Understanding SMD Components and Their Continued Dominance

Surface-Mount Device (SMD) components remain the cornerstone of contemporary electronics manufacturing in 2026. As product designs push toward extreme miniaturization, higher frequencies, lower power consumption, and greater reliability under harsh conditions, SMD technology continues to evolve while maintaining its position as the default choice for over 95% of all PCB assemblies worldwide.

Unlike through-hole components that require leads passing through drilled holes, SMDs are mounted directly onto the surface of the PCB with solder joints formed on pads. This enables dramatically smaller footprints, shorter signal paths, reduced parasitic inductance and capacitance, automated high-volume assembly, and lower overall production costs. In 2026, the SMD ecosystem includes everything from ultra-tiny 008004 passives (0.25 × 0.125 mm) to complex multi-die SiP modules.

At STHL, with 18 years of specialized SMD and PCBA manufacturing experience, we place and solder millions of SMD components daily across high-mix and high-volume programs for customers in the United States, Europe, China, and Southeast Asia. Certified to ISO 9001:2015, IATF 16949, ISO 13485, and IPC-A-610 Class 3, STHL supports the full range of SMD packages — from 008004 passives to 45 mm × 45 mm BGAs and advanced SiP modules — with placement accuracy down to ±25 μm and first-pass yields consistently above 99.5%.

The SMD Component Landscape in 2026

Evolution of Passive SMD Packages

Passive components (resistors, capacitors, inductors) continue to shrink while performance improves.

• Ultra-small chip resistors & capacitors — 008004 (0201 metric) and even 005004 prototypes in pilot production
• High-frequency & high-Q MLCCs — Class I dielectrics (C0G/NP0) up to 100 V in 0201 size
• Thin-film resistors — TCR < ±5 ppm/°C, tolerance ±0.01% in 0402
• Power inductors & transformers — Shielded SMD types handling 20–50 A for DC-DC converters

Active & Integrated SMD Components

Active devices drive much of the performance leap in 2026.

• Microcontrollers & processors — 32-bit ARM Cortex-M series in 0.4 mm pitch QFN/LGA
• Power management ICs — Multi-phase buck converters, PMICs, GaN/SiC drivers in tiny QFN
• RF front-end modules — 5G/6G integrated FEMs with embedded filters and amplifiers
• Sensors & MEMS — Accelerometers, gyroscopes, pressure sensors in LGA packages

STHL routinely places and inspects 0.3 mm pitch BGAs and 008004 passives with zero-compromise quality.

Designing with ultra-small SMDs or high-reliability actives? Contact STHL for a free DFM review — our engineers can help you avoid common pitfalls early.

Key Advantages of SMD Components in 2026 Designs

Space & Weight Reduction

SMDs enable 50–80% smaller board area compared to through-hole equivalents — critical for wearables, medical implants, drones, and AR/VR glasses.

Electrical Performance Gains

Shorter interconnect lengths dramatically reduce parasitic inductance (<0.1 nH vs. 1–5 nH for THT) and capacitance, enabling:

• Cleaner high-frequency signals (mmWave, 5G/6G, radar)
• Lower power noise in AI edge processors
• Faster switching in GaN/SiC power circuits

Automated High-Volume Production

SMT lines place 100,000+ components per hour with ±25 μm accuracy, making SMD the only viable option for cost-competitive mass production.

Thermal & Mechanical Improvements

Embedded heat spreaders, thermal vias, and smaller solder joints improve heat dissipation and reduce mechanical stress in vibration-heavy applications.

The table below compares SMD vs. through-hole performance in 2026:

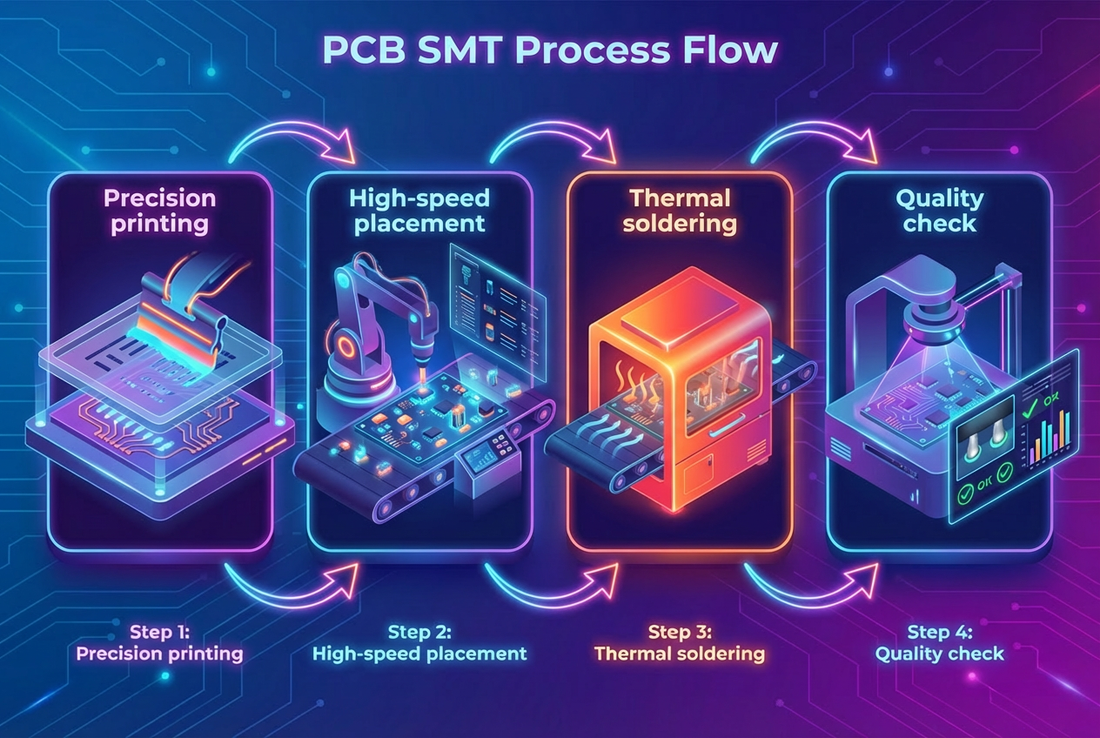

Design & Manufacturing Considerations for SMD-Heavy PCBAs in 2026

SMD Package Selection & Footprint Rules

Follow IPC-7351 for optimal solder joint reliability:

• Pad size = component terminal + fillet allowance
• Solder mask expansion 0.05–0.1 mm
• Via-in-pad (VIP) for thermal/electrical performance (with via fill)

Stencil Design & Solder Paste Printing

• Stencil thickness 0.1–0.12 mm for fine-pitch
• Aperture reduction 5–10% for 0201/01005
• Area ratio ≥0.66, aspect ratio ≥1.5

Reflow & Void Control

Vacuum reflow reduces voids in large BGAs to <10–15%.

Inspection & Test Strategy

• 3D SPI for paste volume/shape
• 3D AOI for placement & solder joint quality
• 3D X-ray for hidden joints
• Boundary scan & functional test

Working on a high-density SMD design? Reach out to STHL for a free DFM & stencil review — our team can optimize your layout before you commit to tooling.

Common Challenges & Best Practices for SMD Components in 2026

Tombstoning & Skew on Small Chip Components

Cause: Uneven wetting forces during reflow

Prevention: Symmetrical pads, balanced copper under component, slower preheat ramp

Head-in-Pillow & Non-Wet Opens on Large BGAs

Cause: Insufficient solder volume or warpage

Prevention: 3D SPI verification, vacuum reflow, optimized ball-to-pad ratio

Solder Beading & Mid-Chip Solder Balls

Cause: Excessive paste or rapid outgassing

Prevention: Aperture reduction, type-5 paste, nitrogen reflow

Component Misplacement on Ultra-Small Packages

Cause: Nozzle condition or feeder vibration

Prevention: Regular nozzle cleaning, feeder calibration, placement accuracy verification

STHL’s closed-loop 3D SPI/AOI system and vacuum reflow process reduce these defects to near-zero levels in production.
