Clarifying the Fundamental Difference Between SMD and SMT in 2026

In the fast-evolving world of electronics manufacturing, the terms SMD and SMT are frequently used interchangeably, yet they represent two distinctly different concepts. Understanding the SMD vs SMT differences is essential for engineers, procurement teams, and product managers who want to make informed decisions about design, cost, reliability, and manufacturability in 2026.

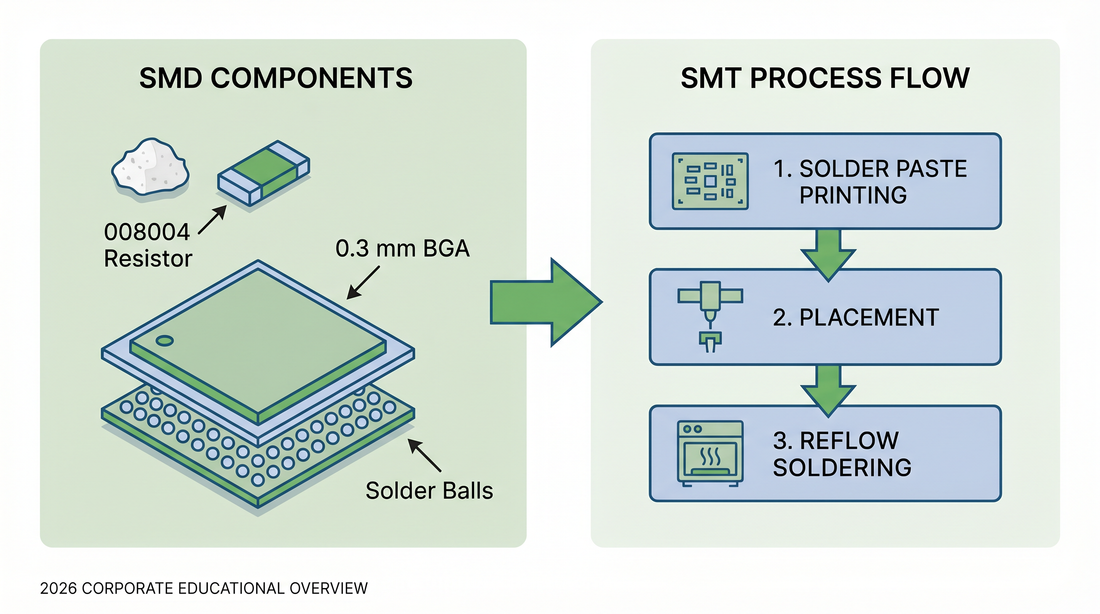

SMD stands for Surface Mount Device. It refers to the physical electronic component itself — any part designed to be mounted directly onto the surface of a printed circuit board (PCB) without leads passing through drilled holes. Common SMD examples include chip resistors, multilayer ceramic capacitors (MLCCs), QFN ICs, BGAs, LEDs, MOSFETs, and complex system-in-package (SiP) modules.

SMT, on the other hand, stands for Surface Mount Technology. It is the manufacturing process and set of techniques used to assemble SMD components onto the PCB. SMT encompasses solder paste printing, component placement, reflow soldering, inspection (AOI, X-ray), and testing.

In simple terms:

• SMD = the component
• SMT = the process of attaching those components to the board

In 2026, the distinction remains highly relevant because not all SMD packages are equally easy to assemble, and not all SMT lines can reliably handle the full spectrum of modern SMD packages — especially ultra-miniature 008004/005004 passives, 0.3 mm pitch BGAs, and embedded components.

At STHL, with 18 years of specialized SMT and SMD assembly experience, we have mastered both the components and the process. Serving OEMs in the United States, Europe, China, and Southeast Asia, STHL is certified to ISO 9001:2015, IATF 16949, ISO 13485, and IPC-A-610 Class 3. Our advanced SMT lines routinely place 008004 passives and 0.3 mm pitch BGAs with placement accuracy of ±25 μm and first-pass yields consistently above 99.5%.

The Evolution of SMD Components from 2010 to 2026

The SMD ecosystem has undergone dramatic miniaturization over the past decade. In 2010, 0402 and 0603 packages were considered small. By 2026, 008004 (0.25 × 0.125 mm) and even 005004 packages are in mass production for high-end smartphones, true wireless earbuds, medical wearables, and implantable devices.

Key SMD package trends in 2026 include:

• Ultra-miniature passives: 008004 and 005004 chip resistors and capacitors
• Fine-pitch active devices: 0.3 mm and 0.35 mm pitch BGAs and LGAs
• High-power SMDs: Power QFN, LFPAK, and DirectFET packages for EV and industrial applications
• Integrated modules: SiP and SiM packages with embedded passives and thinned dies

These smaller packages deliver significant benefits — reduced board area, lower parasitic inductance and capacitance, better high-frequency performance, and improved thermal characteristics — but they also demand far more sophisticated SMT processes, tighter process controls, and advanced inspection systems.

Designing with ultra-small SMD packages or fine-pitch BGAs? Contact STHL for a free DFM review — our engineers can help you avoid common manufacturability pitfalls early in the design phase.

Core SMD vs SMT Differences: A Detailed Comparison

1. Definition and Scope

• SMD: Refers to the physical component. Any electronic part designed for surface mounting.
• SMT: Refers to the entire manufacturing technology and process used to attach SMD components to the PCB.

2. Design Implications

SMD package selection directly affects board density, electrical performance, thermal management, and cost. SMT process capability determines whether those chosen SMD packages can be reliably assembled at scale.

3. Manufacturing Process Flow

A typical SMT process includes:

• Solder paste printing
• 3D SPI inspection
• Component placement
• Reflow soldering (convection, vacuum, nitrogen)
• 3D AOI and X-ray inspection
• Functional and in-circuit testing

SMD components must be compatible with this process — correct packaging (reel, tray, tube), MSL level, solderability, and thermal profile tolerance.

4. Performance Characteristics

• SMD advantages: Smaller size, lower parasitics, higher component density, better high-frequency performance.
• SMT advantages: High automation, high throughput (>100,000 CPH), lower labor cost, consistent quality when properly controlled.

The table below summarizes the key SMD vs SMT differences in 2026:

Need help choosing the right SMD packages and matching SMT process for your 2026 design? Contact STHL — our engineering team can provide a free SMD vs SMT compatibility and DFM review.

Technical Challenges of SMD vs SMT in 2026 and How STHL Addresses Them

Challenge 1: Ultra-Miniature SMD Placement

008004 and 005004 packages require placement accuracy of ±25 μm and extremely tight process control.

STHL Solution: High-speed flexible mounters with advanced vision systems and force-controlled placement.

Challenge 2: Fine-Pitch BGA and LGA Assembly

0.3 mm pitch BGAs demand precise solder paste volume, minimal warpage, and vacuum reflow to control voiding.

STHL Solution: Step-down stencil design, vacuum reflow ovens, and 100% 3D X-ray inspection for all fine-pitch BGAs.

Challenge 3: Warpage and Thermal Management

Smaller packages and denser boards increase sensitivity to warpage during reflow.

STHL Solution: Low-warpage laminate selection, balanced copper distribution, and optimized reflow profiles with slow ramp rates.

Challenge 4: Inspection Complexity

Many defects (voids, head-in-pillow, non-wet opens) are hidden beneath packages.

STHL Solution: Multi-angle 2.5D X-ray, full 3D CT for qualification, and high-speed laminography for production.

STHL’s closed-loop process control — from 3D SPI feedback to placement correction to reflow optimization — ensures high first-pass yield even with the most challenging SMD packages.

Best Practices for Successful SMD vs SMT Implementation in 2026

Design Phase

• Follow IPC-7351 guidelines for land patterns
• Use NSMD pads for better solder volume on fine-pitch devices
• Balance copper distribution to minimize warpage
• Specify low-warpage substrate materials for dense boards

Process Selection

• Choose SMT line capability according to the smallest SMD package
• Use vacuum reflow for all BGA/LGA packages
• Implement 3D SPI + 3D AOI + 3D X-ray as standard inspection

Quality and Validation

• Define clear acceptance criteria (IPC-A-610 Class 3)
• Perform process validation (IQ/OQ/PQ) for critical steps
• Maintain full traceability and lot-code control

STHL applies these best practices on every project, ensuring consistent high-quality results whether the design uses standard SMDs or cutting-edge ultra-miniature packages.

Ready to optimize your SMD package selection and SMT process for 2026? Contact STHL today — our team can provide a free DFM analysis and recommend the best SMD vs SMT approach for your specific application.

Partner with STHL for Expert SMD and SMT Solutions in 2026

In 2026, success in electronics manufacturing depends on a deep understanding of both SMD components and the SMT processes used to assemble them. The right partner combines advanced equipment, rigorous process control, comprehensive inspection, and a true engineering-first culture to deliver high yield, reliability, and cost efficiency.

STHL has spent 18 years mastering the intricate relationship between SMD selection and SMT execution. From ultra-miniature 008004 passives to complex fine-pitch BGA modules, we help our customers achieve first-pass success and long-term product reliability.

Your next design deserves the perfect balance between SMD innovation and SMT excellence.
