Why Surface Mount Sizes Still Matter in 2026

Even in 2026 — with chiplets, 3D packaging, and heterogeneous integration dominating headlines — the vast majority of electronic assemblies still rely on discrete surface-mount devices (SMDs) for passives, power discretes, LEDs, sensors, connectors, and many active ICs. The correct choice of surface mount sizes directly impacts:

• achievable board density
• parasitic inductance/capacitance
• solder joint reliability
• manufacturing yield & cost
• thermal performance
• rework/serviceability

Smaller packages (01005, 008004, even 005004 pilots) enable extreme miniaturization in wearables, medical implants, and 5G/6G RF modules, while larger packages remain essential for power handling, high-voltage isolation, and mechanical robustness.

At STHL, with 18 years of high-mix and high-volume SMD assembly experience, we place and solder millions of components daily — from 008004 passives to 45 mm × 45 mm SiP modules — for customers in the United States, Europe, China, and Southeast Asia. Certified to ISO 9001:2015, IATF 16949, ISO 13485, and IPC-A-610 Class 3, STHL has deep expertise in matching the right surface mount sizes to your performance, reliability, cost, and manufacturability requirements.

This 2026-updated guide explains the current SMD package landscape, selection criteria, design rules, common pitfalls, and how to future-proof your BOM.

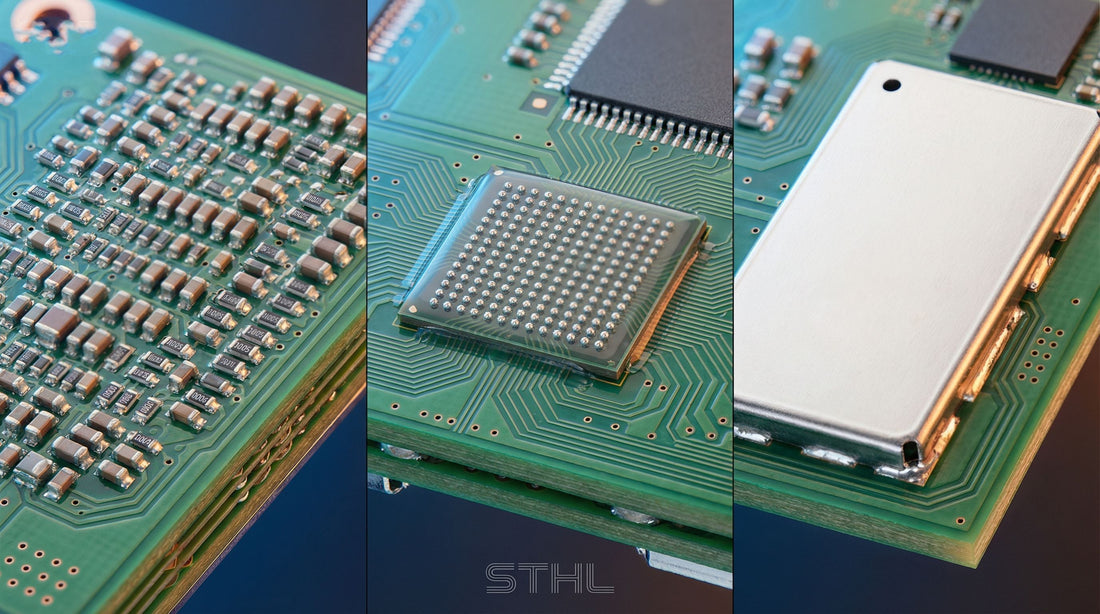

Current SMD Package Families in 2026

Ultra & Ultra-Ultra Small Chip Passives

The relentless drive toward miniaturization continues:

• 008004 (0.25 × 0.125 mm / 01005 metric) — now standard in high-volume smartphones, hearables, and medical wearables
• 005004 (0.125 × 0.063 mm) — pilot/production in select RF and implantable medical programs
• 0201 (0.6 × 0.3 mm / 0603 metric) — still the workhorse for cost-sensitive high-density boards

Standard & Mid-Size Chip Components

• 0402 (1.0 × 0.5 mm) — most common size for general-purpose passives
• 0603 (1.6 × 0.8 mm) — preferred for higher power or better solder joint reliability
• 0805 / 1206 — standard for power resistors, inductors, electrolytic capacitors

Discrete Semiconductors & Power Devices

• SOD-323 / SOD-523 — ultra-small diodes & protection devices
• SOT-23 / SOT-323 — transistors, MOSFETs, voltage regulators
• Power QFN / Power LGA — high-current MOSFETs, GaN/SiC drivers, PMICs

Integrated Circuits & Modules

• QFN / LGA — 0.4–0.5 mm pitch mainstream for MCUs, RF transceivers, sensors
• BGA / CSP — 0.3–0.5 mm pitch for processors, memory, RF FEMs
• SiP / SiM — system-in-package modules with embedded passives & thinned dies

STHL routinely assembles all these packages with placement accuracy down to ±25 μm and first-pass yields >99.5%.

Designing with 008004 or 0.3 mm pitch components? Contact STHL for a free DFM review — our team can help you avoid common pitfalls and maximize yield.

How to Choose the Right Surface Mount Size in 2026

Electrical & RF Performance Requirements

• mmWave / 5G/6G RF front-ends → 008004 / 01005 passives + 0.3 mm pitch RF ICs
• High-speed digital (PCIe 6.0, DDR5) → 0402 or larger passives to reduce parasitics
• Power circuits → 0603+ or dedicated power packages

Mechanical & Environmental Demands

• Vibration/shock (automotive, aerospace) → prefer 0603+ or THT for critical passives
• Medical implantables → 008004 / 01005 mandatory

Manufacturing & Yield Considerations

• 008004 / 01005 require Class 100 cleanroom, ultra-fine stencil, type-5 solder paste, vacuum reflow
• 0402 remains the sweet spot for high-volume, cost-sensitive production

Cost & Availability Trade-Offs

Smaller sizes are more expensive per unit and harder to source reliably in 2026.

The table below shows typical trade-offs for passives in 2026:

Unsure which SMD size is right for your design? Reach out to STHL — our engineering team can run a quick feasibility check and recommend the optimal package family.

Design Rules & Manufacturing Best Practices for SMD in 2026

Footprint & Pad Design (IPC-7351 Compliant)

• Pad size = terminal dimension + fillet allowance (0.1–0.15 mm)
• Solder mask expansion 0.05–0.1 mm
• Via-in-pad allowed with via fill for thermal/electrical performance

Stencil Design & Solder Paste Printing

• Stencil thickness: 0.08–0.1 mm for 01005 / 008004
• Aperture reduction: 5–10% for fine-pitch
• Area ratio ≥0.66, aspect ratio ≥1.5

Reflow & Void Control

Vacuum reflow reduces voids to <10–15% on large BGAs.

Inspection & Test Strategy

• 3D SPI for paste volume/shape
• 3D AOI for placement & joint quality
• 3D X-ray for hidden joints
• Boundary scan & functional test

Working on a high-density or high-reliability design? Contact STHL for a free stencil & DFM review — we can help you achieve first-pass success.

Partner with STHL for Expert SMD Assembly in 2026

In 2026, the right choice of surface mount sizes — and the right manufacturing partner — directly determines board density, electrical performance, reliability, manufacturability, and ultimately product success. Choosing a supplier with proven experience across the full SMD spectrum (008004 to large SiP), advanced process capability, and a focus on first-pass yield is essential.

STHL has assembled hundreds of millions of SMD components — from ultra-small passives to complex power and RF modules — for demanding applications in consumer, automotive, medical, industrial, and telecom markets.​

Let’s optimize your SMD strategy together. Reach out to STHL today — our engineering team is ready to review your BOM and layout, recommend the best package sizes, and deliver the performance and reliability your product demands.

We look forward to supporting your next breakthrough.
