Hardware development cycles have compressed dramatically. What once took 18 months from concept to production-ready hardware now moves in 6 to 12 weeks—if your manufacturing partner can keep pace. Turnkey PCB assembly has become the backbone of this acceleration, consolidating fabrication, procurement, assembly, and testing under a single accountable entity. This guide breaks down exactly how the turnkey model works in 2026, what it costs, where it delivers the most value, and how to evaluate a provider before committing your production run.

Whether you are a hardware startup preparing for your first prototype build or an established OEM scaling to medium-volume production, understanding the full turnkey workflow gives you leverage in negotiations, tighter schedule control, and fewer surprises between Gerber release and finished boards.

What Is Turnkey PCB Assembly?

Turnkey PCB assembly is a fully managed manufacturing service where a single provider handles every stage of producing a finished printed circuit board assembly—from bare board fabrication through component sourcing, soldering, inspection, testing, and final box build. The customer hands over design files (Gerbers, BOM, pick-and-place data), and the provider returns fully tested, assembly-ready or shipping-ready boards.

The term "turnkey" comes from the idea that you turn the key and the line runs. You do not manage multiple vendors, coordinate shipping between a fabricator in one city and an assembler in another, or spend engineering hours chasing component availability across distributors. One contract, one point of contact, one quality standard applied end to end.

Turnkey vs. Partial Assembly

Partial assembly models—often called "kitted" or "consignment" assembly—work differently. In a kitted arrangement, the customer sources and supplies all components, ships them to the assembler along with bare boards, and the assembler places and solders them. The assembler bears responsibility only for the soldering process, not for component authenticity, availability, or compatibility.

Dimension Turnkey Assembly Partial / Consignment Assembly
Component sourcing Provider handles full BOM procurement Customer sources and ships components
Quality accountability Single point of accountability end-to-end Split between customer (parts) and assembler (process)
Lead time coordination Provider manages all internal timelines Customer coordinates multiple vendor schedules
Cost transparency Single consolidated quote Separate costs for boards, parts, assembly
Engineering support DFM feedback before any material is ordered Limited to assembly-level review
Risk of delays from shortages Provider manages substitutions and alternatives Customer absorbs all shortage-related delays

The trade-off comes down to control versus efficiency. Consignment gives you maximum control over component selection and sourcing—but it also means you own every supply chain problem. Turnkey transfers that burden to a provider with established distributor networks, in-stock component inventories, and the engineering bandwidth to evaluate alternative parts when a specific manufacturer part number goes on allocation.

[link to: /services/turnkey-pcba]

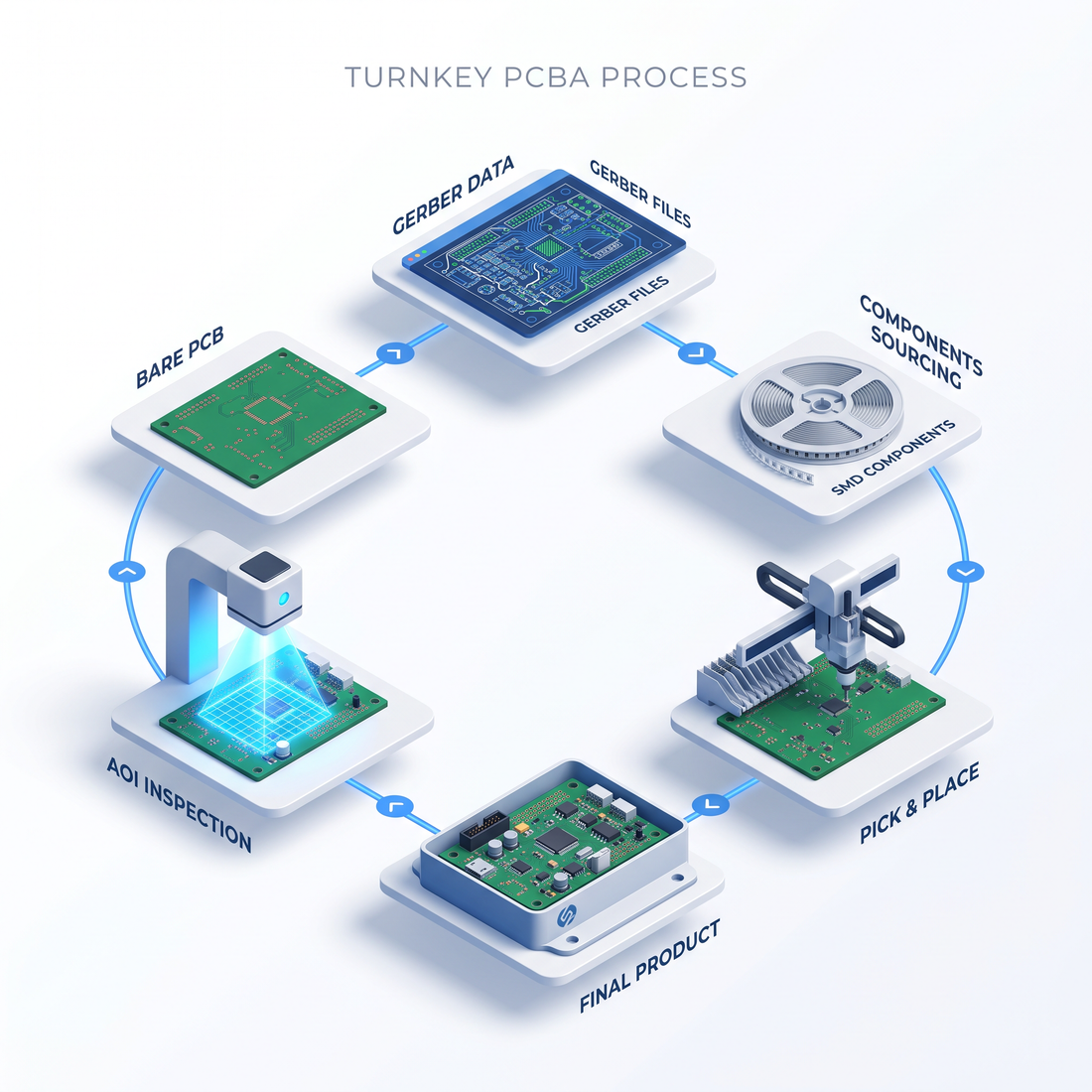

The Turnkey PCBA Process: Step by Step

A mature turnkey workflow is not a linear handoff from one department to the next. It is a parallelized, feedback-driven process where fabrication, procurement, and assembly planning happen concurrently. Below is how a typical turnkey build moves through a modern PCBA facility.

Step 1 — DFM Review & Gerber Analysis

Before any copper is etched or any component is ordered, the engineering team runs a Design for Manufacturing (DFM) review. This is not a formality. A thorough DFM check examines copper trace widths against etch tolerances, annular ring adequacy for drilling, solder mask clearances around fine-pitch pads, panelization efficiency, and component placement feasibility for automated pick-and-place equipment.

Design Rule Checking (DRC) software flags violations against the fabricator's capability matrix. For example, if your design specifies 0.075mm trace widths but the fabricator's standard process handles 0.1mm, the DFM review catches this before it becomes a yield problem. At STHL, the engineering team reviews every Gerber package against IPC-A-610 Class 2/3 acceptability criteria and provides feedback within 24 hours, identifying potential issues like insufficient solder paste stencil apertures for 0.3mm pitch BGA packages or tombstoning risks on 0201 passive components.

Step 2 — PCB Fabrication

Once the design clears DFM, bare board fabrication begins. Modern multilayer PCB fabrication involves sequential lamination, laser drilling for microvias in HDI designs, controlled impedance routing for high-speed signals, and surface finish application (ENIG, HASL, or immersion silver depending on the application).

For multilayer boards up to 32 layers, the fabrication process includes inner layer imaging, etching, oxide treatment, lamination under precise temperature and pressure curves, drilling, desmear, plating, solder mask application, and surface finish. Each step has tolerance windows measured in microns. A fabricator producing rigid-flex boards must also manage the transition zones between rigid FR-4 sections and flexible polyimide areas, ensuring reliable bend performance without copper cracking.

Quick-turn prototype fabrication at STHL can deliver bare boards in 24 to 48 hours for standard 2-4 layer designs, while complex multilayer or HDI builds typically run 5 to 7 days.

Step 3 — Component Sourcing & Procurement

Procurement runs in parallel with board fabrication. The BOM is parsed, each line item is checked against current distributor inventory, and purchase orders are placed across a network of authorized distributors including Digi-Key, Mouser, Arrow, Avnet, and direct manufacturer channels. Long-lead-time components are flagged immediately, and the engineering team proposes alternative parts with equivalent specifications where the original is unavailable.

Component authenticity is non-negotiable. Authorized channel sourcing, combined with incoming inspection protocols, prevents counterfeit parts from entering the assembly line. For automotive and medical applications where traceability is mandated by IATF 16949 and ISO 13485 respectively, every component's lot code, date code, and supplier origin are documented and linked to the final assembly serial number.

Step 4 — SMT & Through-Hole Assembly

Surface mount technology (SMT) assembly begins with solder paste printing using a stainless steel laser-cut stencil. The paste print is inspected by SPI (Solder Paste Inspection) equipment before any component is placed, because paste deposition defects account for over 60% of solder joint failures.

Pick-and-place machines then position components at speeds reaching 30,000 to 100,000 CPH (components per hour) depending on the equipment class. Modern placement systems handle 01005 (0.4mm × 0.2mm) chip components and fine-pitch BGA packages down to 0.3mm pitch with placement accuracy of ±25 microns at 3 sigma. Components are verified by vision systems during placement—wrong part values are caught before they are committed to the board.

Reflow soldering follows, with thermal profiles tailored to the solder paste chemistry (lead-free SAC305 typically) and the thermal mass of the assembly. The reflow profile—preheat, soak, reflow, and cooling zones—must be validated for each board design to avoid cold solder joints, voiding under BGAs, or thermal damage to temperature-sensitive components.

Through-hole technology (THT) components are inserted manually or via automated insertion equipment, then soldered using selective soldering, wave soldering, or hand soldering depending on component geometry and board density. Mixed-technology boards requiring both SMT and THT processing follow a sequenced workflow where SMT is completed first, followed by THT insertion and soldering.

Step 5 — Inspection & Testing

Automated Optical Inspection (AOI) scans every board post-reflow, comparing solder joint geometry, component presence, and placement offset against a golden-board reference. X-ray inspection is deployed for BGA, QFN, and other hidden-joint packages where visual inspection cannot reach. X-ray reveals voiding, bridging, misalignment, and insufficient solder under area-array packages.

Functional testing (FCT) validates that the board performs its intended function—powering up, communicating, processing signals correctly. In-circuit testing (ICT) uses a bed-of-nails fixture to probe individual nets and verify component values, shorts, and opens at the electrical level. The combination of AOI, X-ray, ICT, and FCT provides multi-layered defect coverage that catches process defects, component defects, and functional defects respectively.

Step 6 — Box Build & Final Assembly

For projects requiring more than a bare assembled board, box build assembly integrates the PCBA into its enclosure—mounting boards, connecting cable assemblies, installing displays, buttons, and power supplies, and applying conformal coating for environmental protection. Conformal coating (acrylic, silicone, or polyurethane) protects against moisture, dust, chemical exposure, and vibration in automotive, industrial, and outdoor applications.

Final testing includes burn-in testing for reliability validation, hi-pot testing for electrical safety, and cosmetic inspection before packaging. The completed units are then packaged with ESD protection and shipped per customer logistics requirements.

Process Step Typical Timeline (Prototype) Typical Timeline (Production)
DFM Review & Gerber Analysis 12–24 hours 12–24 hours
PCB Fabrication 24–48 hours (2-4 layer) / 5–7 days (multilayer) 5–10 days
Component Sourcing 1–3 days (in-stock) / 1–4 weeks (long lead) 1–4 weeks
SMT & THT Assembly 1–2 days 3–7 days
Inspection & Testing 1 day 1–3 days
Box Build & Final Assembly 1–2 days 3–5 days
Total (typical quick-turn prototype) 5–10 business days 3–5 weeks

Key Benefits of Turnkey PCBA

Single-Point Accountability

When fabrication, procurement, assembly, and testing sit under one roof, there is no finger-pointing when something goes wrong. A solder defect traced to a contaminated bare board surface is resolved internally between the fabrication and assembly teams—not through a dispute between two separate vendors. This accountability collapses problem-resolution cycles from weeks to hours.

Compressed Lead Times

Parallel processing is the single biggest schedule advantage of turnkey. In a fragmented supply chain, board fabrication cannot start until Gerbers are released, procurement cannot start until the BOM is finalized, and assembly cannot start until both boards and components arrive. Turnkey providers begin procurement the moment the BOM is locked, overlapping it with fabrication. This parallelization routinely saves 2 to 4 weeks compared to sequential vendor management.

Engineering Support Early in the Cycle

Turnkey providers have a vested interest in catching design issues before they become manufacturing defects. DFM feedback arrives before material is committed, giving the hardware team a chance to adjust pad geometries, panelize for optimal material utilization, or swap a marginally available component for a readily sourced alternative. This early-stage engineering engagement is something consignment assemblers rarely provide, since their involvement begins only after boards and parts arrive at their dock.

Supply Chain Resilience

Turnkey providers maintain relationships with multiple distributors and often stock high-velocity components in their own inventory rooms. When a specific part number goes on allocation or experiences a 30-week lead time, the provider's procurement team already has visibility into equivalent alternatives and can propose validated substitutes without waiting for the customer to research and approve a replacement. In 2026's volatile semiconductor market, this responsiveness is not a convenience—it is a project survival mechanism.

Cost Efficiency Through Volume Aggregation

Turnkey providers aggregate component purchasing across all their customers. A component that your project needs in quantities of 500 might be purchased in quantities of 50,000 across the provider's full book of business, unlocking volume pricing tiers that an individual customer cannot reach. This aggregation discount, combined with the elimination of inbound shipping costs and the reduction in internal purchasing overhead, often makes turnkey less expensive than consignment—even before accounting for the time savings.

Quality Consistency and Certification

Turnkey providers serving automotive, medical, and industrial markets operate under certified quality management systems (ISO 9001, IATF 16949, ISO 13485). Every process step is documented, every material is traceable, and every inspection result is recorded. This consistency means that the prototype build and the production build follow the same procedures, the same stencil designs, and the same reflow profiles—reducing the risk of quality drift between development and mass production.

Turnkey PCBA Cost Factors

Understanding what drives cost in a turnkey quote lets you make informed design decisions that reduce spend without compromising quality. The major cost categories are:

Bare Board Cost: Driven by layer count, board size, material type (standard FR-4 vs. high-Tg or Rogers for RF), copper weight, surface finish, and panelization efficiency. A 6-layer board costs roughly 2.5 to 3x a 2-layer board of the same size. HDI constructions with blind and buried vias add 40-80% over standard multilayer pricing.

Component Cost: Typically the largest single cost category, representing 50-70% of total turnkey cost for BOM-heavy designs. Component cost is driven by BOM line count, part availability, manufacturer pricing tiers, and whether parts are on allocation. Long-lead-time components may require expedite fees or premium-channel purchasing.

Assembly Cost: Driven by component count (total placements), component mix (SMT vs. THT), package complexity (01005, fine-pitch BGA, and QFN require more setup and slower placement speeds), number of unique SMT setups (side A/side B), and whether the board requires conformal coating or potting.

Tooling and Setup: One-time costs including stencil fabrication, AOI program development, ICT/FCT fixture fabrication, and first-article inspection. These are amortized across the production quantity—higher volumes reduce per-unit tooling cost.

Testing: AOI and X-ray are typically included in standard assembly pricing. ICT and FCT involve fixture costs and per-test cycle time, adding 2-8 per board depending on test complexity.

Cost Category % of Total Cost (Typical) Primary Cost Drivers
Components 50–70% BOM size, part availability, pricing tiers
Bare Board Fabrication 10–20% Layer count, material, surface finish, HDI
SMT & THT Assembly 10–15% Placement count, package complexity, double-side processing
Tooling & Stencils 3–8% (one-time) Stencil, test fixtures, programming
Testing (ICT/FCT) 2–5% Fixture complexity, test cycle time
Box Build & Coating 5–10% Enclosure complexity, coating type

Ready to start your PCBA project? Contact STHL's engineering team today for a free DFM review and itemized quote—your BOM will be analyzed within 24 hours, with component availability and alternative part suggestions included.

Industries That Benefit Most from Turnkey Assembly

Automotive Electronics: IATF 16949-certified turnkey providers deliver the traceability, PPAP documentation, and process control that automotive OEMs require. Engine control units, battery management systems, ADAS modules, and infotainment systems all demand zero-defect quality levels that only tightly controlled, fully integrated manufacturing lines can sustainably deliver.

Medical Devices: ISO 13485 mandates design controls, risk management, and process validation that turnkey providers are structured to support. Patient monitoring equipment, diagnostic instruments, and surgical robotics all benefit from the documentation depth and component traceability that a certified turnkey partner maintains.

Industrial Electronics: High-reliability applications—programmable logic controllers, motor drives, power inverters, and sensor networks—operate in harsh environments where conformal coating, thermal management, and robust solder joints are essential. Turnkey providers handle the full bill of materials for these complex mixed-signal designs while maintaining consistent quality across production lots.

IoT and Consumer Electronics: Short product lifecycles and aggressive launch windows define these markets. Turnkey's ability to move from prototype to production in weeks—not months—aligns with the rapid iteration cycles that IoT startups and consumer electronics brands require. STHL's quick-turn prototype service regularly delivers assembled boards in 5-7 business days for 2-4 layer IoT designs with standard BOMs.

Hardware Startups: Startups typically lack procurement infrastructure, in-house quality teams, and the engineering bandwidth to manage multiple vendors. Turnkey fills this gap, providing the operational maturity of an established manufacturer without the startup needing to build it internally.

Why Choose STHL for Turnkey PCBA

STHL operates a fully integrated turnkey PCBA facility in Shenzhen, China—the heart of the global electronics supply chain. This location provides proximity to the world's largest component distribution network, enabling same-day procurement for in-stock parts and rapid access to alternative components when supply constraints arise.

Certified Quality: STHL holds ISO 9001, IATF 16949, and ISO 13485 certifications, with assembly processes benchmarked against IPC-A-610 Class 2 and Class 3 acceptability standards. Whether your product is a consumer device or a Class III medical instrument, the quality system scales to match.

Technical Range: Multilayer PCB fabrication up to 32 layers, HDI construction with blind/buried vias, 01005 component placement, 0.3mm pitch BGA handling, flexible and rigid-flex PCB assembly, and conformal coating—STHL's capability matrix covers the full spectrum of modern electronics manufacturing requirements.

Testing Depth: AOI on 100% of production boards, SPI on solder paste deposition, X-ray inspection for hidden-joint packages, ICT for electrical fault isolation, and FCT for functional validation. Multiple inspection layers mean defects are caught at the stage where they originate, not downstream where rework is expensive.

Flexible Volume: From quick-turn prototypes delivered in 24-48 hours to low and medium volume production runs, STHL scales with your product lifecycle without requiring you to switch providers as volume grows.

Ready to move from design to production with a partner who handles every step? Contact STHL for a free DFM review and turnkey quote. Our engineering team will analyze your Gerber files and BOM, identify potential manufacturing issues, and return a detailed proposal within one business day.

Conclusion

Turnkey PCB assembly in 2026 is not simply a sourcing convenience—it is a strategic manufacturing model that compresses development timelines, consolidates accountability, and leverages provider-scale supply chain infrastructure to deliver cost and quality advantages that fragmented vendor management cannot match. From the first DFM review through final box build and functional test, every step is coordinated, documented, and optimized for the specific product being built.

The hardware companies winning in 2026 are not the ones with the largest internal manufacturing teams. They are the ones who chose the right manufacturing partner early, locked in quality at the prototype stage, and scaled seamlessly into production without changing processes, providers, or quality systems. As hardware development cycles compress and global supply chains grow more complex, the question isn't whether to adopt turnkey manufacturing—it's whether you can afford not to. What will your next product launch look like when procurement, assembly, and testing are all managed under one roof?
