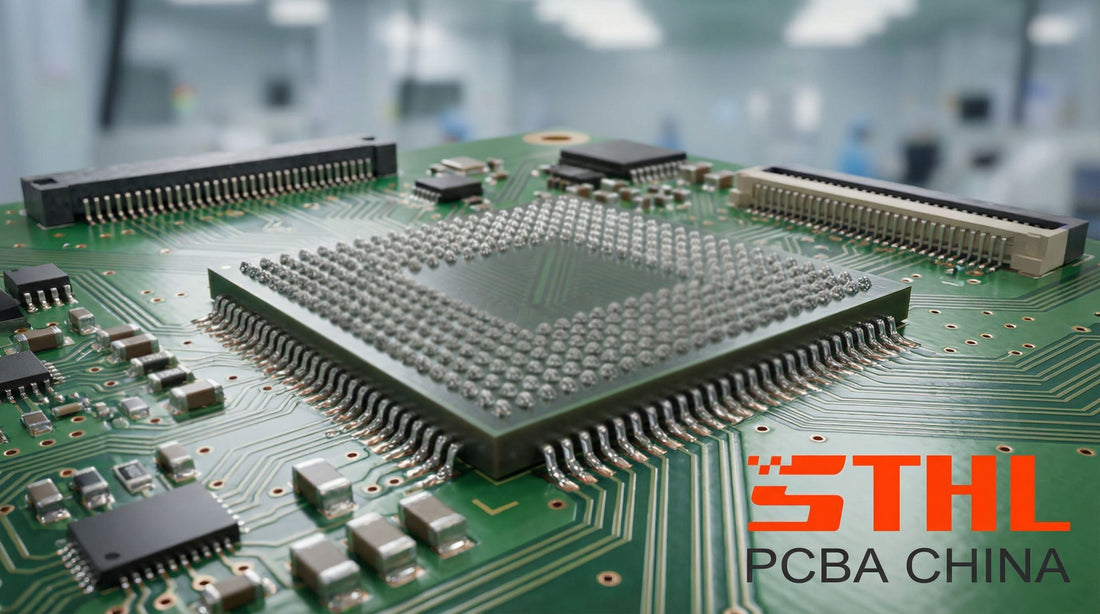

BGA PCB Assembly in 2026: Advanced Techniques, Challenges & Best Practices for High-Reliability Electronics
Делиться
- Why BGA PCB Assembly Remains a Critical Focus in 2026
- Core BGA Assembly Challenges in 2026 and How to Overcome Them
- Void Formation & Head-in-Pillow Defects
- Primary Causes
- Proven Mitigation Techniques
- Non-Wet Opens & Solder Joint Reliability Issues
- Root Causes
- Best Practices
- Warpage-Induced Bridging & Misalignment
- Control Measures
- Advanced BGA Assembly Techniques & Equipment in 2026
- Solder Paste Printing & 3D SPI
- Placement Accuracy & Force Control
- Reflow Soldering Optimization
- Post-Reflow Inspection & Validation
- Implementing a Robust BGA PCB Assembly Process in 2026
- Design Phase: DFM & Package Selection
- Process Validation & Qualification
- Production Monitoring & Continuous Improvement
- Partner with STHL for Expert BGA PCB Assembly in 2026
Why BGA PCB Assembly Remains a Critical Focus in 2026
Ball Grid Array (BGA) packaging continues to dominate high-performance, high-pin-count integrated circuits in 2026. From AI accelerators, 5G/6G baseband processors, automotive ADAS SoCs, medical imaging FPGAs, to high-end consumer application processors, BGA remains the go-to choice for delivering maximum I/O density, superior electrical performance, and excellent thermal characteristics in the smallest possible footprint.
However, BGA PCB assembly is also one of the most technically demanding processes in electronics manufacturing. The shift toward finer pitch (0.3–0.4 mm), larger body sizes (up to 60 mm × 60 mm), higher ball counts (>3000), and mixed-metal stacks (Cu pillar + SAC305) has amplified challenges related to voiding, head-in-pillow defects, non-wet opens, warpage-induced bridging, and long-term reliability under thermal cycling and vibration.
At STHL, with 18 years of specialized BGA PCB assembly experience, we support OEMs and contract manufacturers in the United States, Europe, China, and Southeast Asia with full-turnkey BGA solutions certified to ISO 9001:2015, IATF 16949, ISO 13485, and IPC-A-610 Class 3. Our dedicated fine-pitch lines, vacuum reflow ovens, 3D X-ray inspection, and IPC Class 3 workmanship deliver consistent void rates <15% and first-pass yields >99% on even the most challenging BGA designs.
Core BGA Assembly Challenges in 2026 and How to Overcome Them
Void Formation & Head-in-Pillow Defects
Voiding remains the #1 reliability concern for large BGAs and high-pin-count packages.
Primary Causes
- Flux volatiles trapped during reflow
- Insufficient solder volume or poor paste release
- Package/board warpage mismatch
- Rapid outgassing from solder mask or substrate
Proven Mitigation Techniques
- Vacuum reflow (reduces voiding by 50–80%)
- Type-5 or Type-6 solder paste with optimized flux content
- 3D SPI verification of paste volume (target 80–120% of pad area)
- Step-down stencil apertures for center pads
- Nitrogen atmosphere to minimize oxidation
STHL routinely achieves average BGA void rates of 8–12% using vacuum reflow and closed-loop SPI feedback.
Struggling with BGA void rates or head-in-pillow defects? Contact STHL — our process engineers can review your current profile and stencil design and provide a free void-reduction optimization proposal.
Non-Wet Opens & Solder Joint Reliability Issues
Non-wet opens (solder does not wet to pad) and brittle fractures after thermal cycling are frequent failure modes.
Root Causes
- Insufficient flux activity or poor pad wettability
- Excessive intermetallic compound (IMC) growth
- Package warpage pushing balls off pads during reflow
- Contamination on pads or balls
Best Practices
- Plasma cleaning of boards before assembly
- NSMD (non-solder mask defined) pads for better solder volume
- Optimized reflow profile with extended TAL (time above liquidus)
- SAC305 or low-silver alloys with enhanced reliability additives
- Post-reflow X-ray + shear/pull testing for qualification
Warpage-Induced Bridging & Misalignment
Large body BGAs (>35 mm) and asymmetric stack-ups frequently warp during reflow, causing bridging or open joints.
Control Measures
- Balanced copper distribution in package substrate and PCB
- Staggered via-in-pad design to reduce stress concentration
- Low-warpage laminates (high-Tg, low-CTE)
- Reflow profile with slow ramp and extended soak
STHL uses warpage modeling software and shadow moiré measurement to predict and compensate for warpage before production.
Advanced BGA Assembly Techniques & Equipment in 2026

Solder Paste Printing & 3D SPI
- Ultra-thin stencils (0.08–0.1 mm) for 0.3 mm pitch
- Step-down apertures for center pads
- 3D SPI tolerance: ±50% volume, ±75 μm position
Placement Accuracy & Force Control
- Placement accuracy ±25 μm for 0.3 mm pitch
- Force-controlled placement for thinned packages
- Vision alignment with multi-angle fiducial correction
Reflow Soldering Optimization
- Vacuum reflow ovens (void reduction 50–80%)
- Nitrogen atmosphere for reduced oxidation
- Multi-zone profiling with real-time thermocouple feedback
Post-Reflow Inspection & Validation
- 3D X-ray (quantitative void analysis, head-in-pillow detection)
- Automated shear/pull testing for qualification
- Thermal cycling & HALT/HASS for reliability validation
The table below summarizes critical BGA assembly parameters and typical 2026 targets:
| Parameter | Typical Challenge | 2026 Target / Best Practice | STHL Capability |
|---|---|---|---|
| Pitch | Bridging / non-wet opens | 0.3–0.4 mm | Routine 0.3 mm placement & inspection |
| Void Rate (large BGA) | Reliability risk | <15% average, <25% max | Vacuum reflow → 8–12% average |
| Paste Volume Consistency | Head-in-pillow | ±50% volume (3D SPI) | Closed-loop 3D SPI feedback |
| Warpage Compensation | Bridging / opens | Balanced stack-up + profile adjustment | Warpage modeling & moiré measurement |
| Joint Inspection | Hidden defects | 100% X-ray + shear/pull sampling | Full 3D X-ray + destructive validation |
Need help achieving <15% void rate on large BGAs or fine-pitch packages? Reach out to STHL — we can provide a free reflow profile & stencil optimization review.
Implementing a Robust BGA PCB Assembly Process in 2026
Design Phase: DFM & Package Selection
- Prefer NSMD pads for better solder volume
- Use via-in-pad with resin fill for thermal/electrical performance
- Balance copper distribution to minimize warpage
- Specify low-warpage substrate materials
Process Validation & Qualification
- Full reflow profile development with thermocouples
- Void & IMC analysis on X-ray cross-sections
- Accelerated life testing (thermal cycling, HAST)
- Mechanical shear/pull testing
Production Monitoring & Continuous Improvement
- Real-time SPC on SPI volume, placement offset, void rate
- 8D root-cause analysis for any escapes
- Regular IPC-A-610 training & certification refresh
STHL’s closed-loop process control and continuous improvement program ensure consistent BGA assembly quality.
Partner with STHL for Expert BGA PCB Assembly in 2026
In 2026, BGA PCB assembly is one of the most technically demanding — and most critical — processes in electronics manufacturing. The difference between a reliable, high-yield product and costly field failures often comes down to the experience of the assembly partner, the sophistication of the reflow/inspection equipment, and the rigor of the process controls.
Your high-pin-count or high-reliability design deserves world-class BGA expertise.
Contact STHL today — let our team review your BGA package and PCB layout, optimize your stencil and reflow profile, and deliver the assembly quality your product demands.
We’re ready to help you achieve first-pass success — and long-term performance.
