The Rise of Embedded Component PCBA Technology

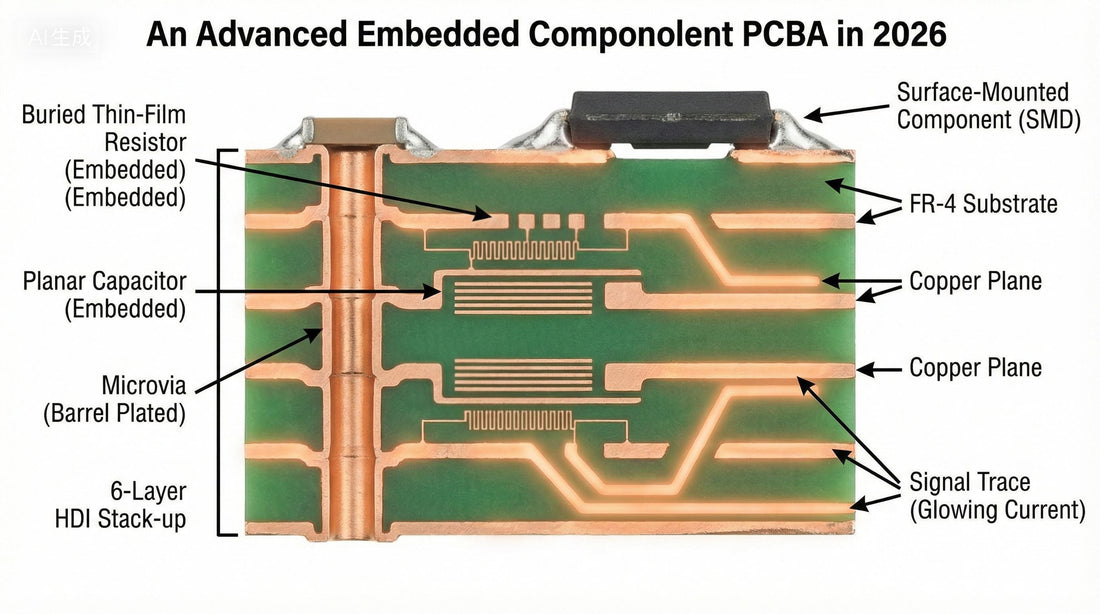

In 2026, embedded component PCBA (also known as embedded passives/actives or buried component technology) has transitioned from niche high-end applications to a mainstream solution for space-constrained, high-reliability, and high-frequency designs. By placing passive components (resistors, capacitors, inductors) — and in advanced cases active dies — inside the PCB substrate layers rather than on the surface, designers achieve dramatic reductions in board footprint, shorter signal paths, lower parasitic inductance/capacitance, improved thermal performance, and enhanced EMI/EMC characteristics.
At STHL, with 18 years of advanced PCBA manufacturing experience, we have been at the forefront of embedded component technology, delivering production-grade embedded PCBA solutions to customers in the United States, Europe, China, and Southeast Asia. Certified to ISO 9001:2015, IATF 16949, ISO 13485, and IPC-A-610 Class 3, STHL combines in-house multilayer HDI fabrication, precision lamination, microvia laser drilling, and rigorous testing to support embedded resistor, capacitor, and even thinned-die integration for demanding applications in 5G/6G RF front-ends, medical imaging, automotive radar, wearable medical devices, and high-performance computing.
Why Embed Components in PCBA? Core Advantages in 2026
Dramatic Miniaturization & Space Savings
Embedding passives inside layers frees valuable surface real estate — reductions of 30–70% in board area are common in RF, power, and sensor designs.
Superior Electrical Performance
Shorter interconnect paths reduce parasitic inductance (typically <0.1 nH vs. 1–5 nH for surface-mount) and capacitance, enabling cleaner high-frequency signals and lower power noise.
Improved Thermal & Mechanical Reliability
Buried components are shielded from external thermal/mechanical stress, reducing solder joint fatigue in vibration-heavy environments (automotive, aerospace) and improving long-term reliability.
Enhanced EMI/EMC & Signal Integrity
Internal placement minimizes loop area and radiation, helping meet stringent radiated emissions and susceptibility requirements without heavy shielding.
Cost & Yield Benefits in Volume Production
While NRE is higher, embedded designs often reduce overall BOM cost (fewer surface-mount parts) and improve yield by eliminating surface defects.
Considering embedded component PCBA for your next design? Contact STHL for a free feasibility review and DFM consultation — let our experts show you the real space and performance gains.
Common Embedded Component Technologies in 2026
Embedded Passive Technology (Resistors & Capacitors)
Thin-film resistors (Ohmega-Ply, TCR ~±25 ppm/°C) and planar capacitors (ceramic-filled or polymer dielectric) are embedded during lamination.
Design Rules & Process Considerations
- Resistor values: 10 Ω – 100 kΩ
- Capacitor values: 1 pF – 1 nF (higher with stacked dielectrics)
- Tolerance: ±10–20% typical (trimming possible)
- Dielectric thickness: 10–50 μm
STHL routinely embeds arrays of 50–200 resistors/capacitors per layer in RF front-end modules.
Embedded Active Components (Thinned Dies)
Thinned silicon dies (50–100 μm) with flip-chip or wire-bond connections are embedded in core or build-up layers for extreme miniaturization.
Key Challenges & Solutions
- Die thinning & handling
- Alignment accuracy (±10 μm)
- Thermal expansion matching
- Void-free encapsulation
STHL’s proprietary die-embedding process achieves >98% void-free yield on production runs.
The table below compares surface-mount vs. embedded passives:
| Parameter | Surface-Mount | Embedded (2026 Typical) |
|---|---|---|
| Footprint Savings | Baseline | 30–70% reduction |
| Parasitic Inductance | 1–5 nH | <0.1 nH |
| Parasitic Capacitance | 0.5–2 pF | <0.05 pF |
| Thermal Resistance | Higher | Lower (buried) |
| EMI Radiation | Higher | Significantly lower |
| NRE Cost | Low | Moderate to high |
| Volume Cost Impact | Higher BOM | Often lower overall BOM |
When to Choose Embedded Component PCBA in 2026

High-Frequency RF & Microwave Designs
5G/6G front-ends, radar modules, satellite transceivers, and mmWave phased arrays benefit most from reduced parasitics.
Space-Constrained Wearables & Medical Implants
Hearing aids, continuous glucose monitors, neurostimulators, and AR/VR glasses require extreme miniaturization.
High-Reliability Automotive & Aerospace
ADAS radar, LiDAR, engine control modules, and avionics demand vibration/thermal resilience.
Power Electronics with High-Density Capacitors
EV on-board chargers, DC-DC converters, and renewable inverters use embedded capacitors for filtering and decoupling.
Designs Targeting EMI/EMC Compliance
Products requiring low radiated emissions or high immunity (medical, defense, industrial) gain significant advantage.
Wondering if embedded components can solve your size or performance bottleneck? Reach out to STHL for a free technical feasibility assessment — our engineers can quickly evaluate your design.
Manufacturing Process & Design Considerations for Embedded PCBA
Core Process Flow
- Base Core Lamination — Embed first-layer passives/dies
- Build-Up Layers — Laser drill microvias, plate, embed additional layers
- Component Attachment — Surface-mount remaining actives
- Final Lamination & Surface Finish — ENIG, OSP, or hard gold
- Advanced Testing — 3D X-ray for void detection, impedance testing, thermal cycling
Critical Design Rules
- Dielectric thickness control (±5 μm)
- Alignment accuracy (±10 μm for actives)
- Thermal expansion matching (CTE <20 ppm/°C mismatch)
- Void-free encapsulation (<5% void area)
STHL’s proprietary embedding process achieves >98% void-free yield on production volumes.
Ready to explore embedded component PCBA for your next design? Contact STHL for a free design consultation and see how we can help you achieve your size and performance goals.
Challenges & Solutions When Implementing Embedded PCBA
Higher NRE & Qualification Costs
Embedding requires additional lamination and laser drilling steps.
Solution
STHL amortizes NRE across production volume and offers shared tooling for similar designs.
Thermal & CTE Mismatch Risks
Different materials expand at different rates, risking delamination.
Solution
STHL uses matched CTE materials and performs extensive thermal cycling qualification.
Repair & Rework Limitations
Embedded components are difficult to replace.
Solution
Design with redundancy or surface alternatives for critical parts.
Test Accessibility
Buried components require indirect testing methods.
Solution
STHL incorporates boundary scan, built-in self-test (BIST), and impedance monitoring.
Partner with STHL for Advanced Embedded Component PCBA in 2026
In 2026, embedded component PCBA is no longer experimental — it is a proven, production-ready technology for space-constrained, high-frequency, and high-reliability applications. Choosing a partner with real experience in embedding, microvia HDI, and high-density lamination is essential to avoid costly qualification failures.
STHL has successfully delivered embedded PCBA solutions for RF front-ends, medical implants, automotive radar, and industrial power modules, consistently achieving high yield and reliability.
Let’s explore how embedded technology can transform your next product. Reach out to STHL today — our engineering team is ready to review your design and show you the real performance and space savings possible.
