The Strategic Importance of EV Battery Management System Assembly in 2026

The electric vehicle (EV) industry is undergoing explosive growth in 2026, with global EV sales projected to exceed 25 million units annually and battery pack voltages pushing toward 800V platforms for faster charging and higher efficiency. At the heart of every high-voltage lithium-ion battery pack lies the Battery Management System (BMS) — a sophisticated electronic control unit that acts as the “brain” of the battery pack.

EV BMS assembly is far more than simply soldering components onto a PCB. It involves the design, manufacturing, and integration of a high-voltage, high-reliability PCBA that must deliver precise monitoring, active/passive balancing, safety protection, thermal management, state-of-charge (SOC) and state-of-health (SOH) estimation, communication with the vehicle’s domain controllers, and compliance with stringent automotive (IATF 16949, AEC-Q100), functional safety (ISO 26262), and regulatory standards.

As battery packs become larger (100–200+ kWh), cell counts increase, and energy densities rise, the complexity of BMS assembly grows exponentially. Challenges include handling 400V–800V systems, managing hundreds of cells in series/parallel configurations, ensuring sub-millivolt voltage accuracy, maintaining thermal stability across wide temperature ranges, and achieving ASIL-D level functional safety in safety-critical applications.

At STHL, with 18 years of specialized high-reliability PCBA manufacturing experience, we have become a trusted partner for EV BMS assembly. Serving OEMs, Tier-1 suppliers, and battery pack manufacturers in the United States, Europe, China, and Southeast Asia, STHL is certified to ISO 9001:2015, IATF 16949, ISO 13485, and IPC-A-610 Class 3. Our dedicated automotive-grade production lines, combined with in-house multilayer & HDI PCB fabrication, strategic component sourcing, advanced SMT/THT assembly, and rigorous validation testing, enable us to deliver EV BMS assemblies that meet the most demanding performance, safety, and reliability requirements of 2026 electric vehicle platforms.

Developing or scaling an EV BMS project in 2026? Contact STHL today for a free technical consultation and DFM review — our engineers can help you optimize your BMS architecture for reliability, cost, and time-to-market.

Core Functions and Architecture of Modern EV BMS in 2026

A state-of-the-art EV Battery Management System performs nine critical functions that directly influence battery life, safety, performance, and vehicle range:

1. Real-Time Cell Monitoring

Continuous measurement of individual cell voltage (sub-millivolt accuracy), pack current, and temperature at multiple points using high-precision ADCs and rail-to-rail op-amps.

2. Safety Protection

Prevention of over-voltage, under-voltage, over-current, over-temperature, short-circuit, and thermal runaway through redundant hardware and software protection layers.

3. Cell Balancing

Active or passive balancing to equalize state-of-charge across hundreds of cells, maximizing usable capacity and extending cycle life.

4. SOC and SOH Estimation

Advanced algorithms (including AI-enhanced models) to accurately estimate remaining capacity and predict battery degradation.

5. Thermal Management Control

Integration with cooling/heating systems to maintain optimal cell temperatures (typically 15–35°C) and prevent lithium plating or accelerated aging.

6. Communication and Data Reporting

High-speed CAN, LIN, or Ethernet interfaces for seamless integration with the vehicle’s domain controllers and cloud platforms for remote diagnostics.

7. Fault Diagnosis and Isolation

Detection and isolation of faulty cells or modules to maintain pack operability and prevent cascading failures.

8. Charge/Discharge Management

Optimized control strategies for fast charging (up to 350–500 kW) while respecting cell limits.

9. Predictive Maintenance via AI

Deep learning models that analyze historical data to predict failures before they occur, reducing warranty costs and improving fleet uptime.

BMS architectures in 2026 typically follow centralized, modular, or distributed topologies. Distributed architectures, where monitoring ICs are placed close to cell groups, are increasingly popular for large packs to reduce wiring harness complexity and improve measurement accuracy.

STHL supports all major BMS topologies with custom multi-layer PCBs featuring high-current busbars, heavy copper layers, impedance-controlled traces, and reinforced insulation for high-voltage isolation.

Technical Challenges in EV BMS Assembly and How STHL Addresses Them

High-Voltage and High-Current Handling

EV BMS PCBs must safely manage 400V–800V systems and peak currents exceeding 300A during acceleration or fast charging.

STHL Solution: Use of heavy copper (4–12 oz), wide traces, reinforced insulation, and creepage/clearance optimization per IEC 60664-1.

Precision Analog Signal Integrity

Accurate voltage measurement requires rail-to-rail high-voltage op-amps and low-noise layouts in a noisy high-power environment.

STHL Solution: Dedicated analog ground planes, careful component placement, and impedance-controlled routing.

Thermal Management on the BMS Board

BMS boards generate heat from balancing resistors, power management ICs, and communication circuits while operating in a high-temperature battery pack environment.

STHL Solution: Integrated thermal vias, heavy copper planes, and optimized component placement for efficient heat dissipation.

Functional Safety (ASIL-D) Compliance

Many BMS functions require Automotive Safety Integrity Level D (ASIL-D), demanding redundant monitoring, diagnostic coverage >99%, and fail-operational designs.

STHL Solution: Dual-channel architectures, watchdog timers, CRC-protected communication, and comprehensive FMEDA (Failure Mode, Effects, and Diagnostic Analysis) support.

Long-Term Reliability and Lifecycle Support

EV batteries are expected to last 8–15 years or 200,000–500,000 km. BMS assemblies must match this durability.

STHL Solution: AEC-Q100 qualified components, extended temperature range testing (−40°C to +125°C), HALT/HASS validation, and proactive obsolescence management.

The table below highlights key technical challenges in EV BMS assembly and STHL’s proven mitigation strategies:

Facing challenges with high-voltage BMS design or assembly? Contact STHL today — our automotive-grade engineering team can provide a free DFM review and functional safety consultation tailored to your EV platform.

STHL’s Comprehensive EV BMS Assembly Capabilities in 2026

STHL offers full-turnkey EV BMS assembly services that cover the entire value chain:

• PCB Fabrication: Multilayer, HDI, heavy copper (up to 12 oz), rigid-flex, and mixed-material stacks optimized for high-current and high-voltage applications.
• Component Sourcing: Strategic partnerships for AEC-Q100 qualified MCUs, op-amps, balancing ICs, current sensors, and connectors, with robust allocation and second-source management.
• Advanced Assembly: High-mix SMT with 01005 placement capability, selective THT, press-fit, and robotic assembly for large connectors and busbars.
• Testing & Validation: 3D SPI/AOI/X-ray, ICT/FCT, boundary scan, thermal cycling, vibration, HALT/HASS, and full functional validation of BMS algorithms.
• Mechanical Integration: Enclosure assembly, cable harnessing, thermal interface application, potting, and IP-rated sealing.
• Documentation & Traceability: Complete Device History Records, PPAP documentation, and support for customer regulatory submissions.

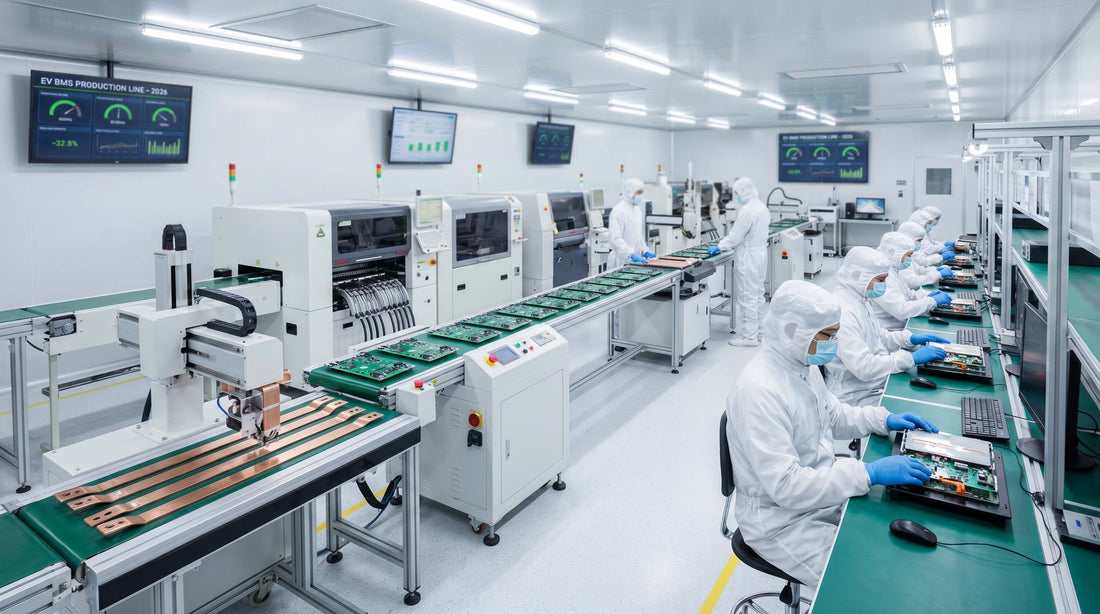

Our dedicated automotive production lines operate under IATF 16949 with full ESD and contamination control, ensuring consistent quality from prototype to high-volume production.

Best Practices for Successful EV BMS Assembly Projects in 2026

Early engagement with an experienced manufacturer like STHL during the design phase is critical. Key best practices include:

• Perform thorough DFM/DFA analysis focusing on high-voltage clearance, thermal vias, and test point accessibility.
• Select components with proven AEC-Q100 qualification and long-term availability.
• Implement redundant monitoring channels for ASIL-D critical functions.
• Validate thermal performance through detailed simulation and physical testing.
• Plan for obsolescence management and second-source qualification from the outset.

STHL’s engineering team works closely with customers from concept through PPAP to ensure smooth development and scalable production.

Ready to bring your next-generation EV BMS to market with confidence? Submit your design files to STHL today — receive expert DFM feedback, a detailed quotation, and a clear path to production within 48 hours.

Partner with STHL for Reliable EV Battery Management System Assembly

The success of any electric vehicle platform in 2026 depends heavily on the performance, safety, and longevity of its battery management system. Choosing the right assembly partner — one with deep automotive experience, advanced process capability, robust supply-chain management, and a proven track record in functional safety — can mean the difference between a market-leading product and costly delays or recalls.

STHL has built its reputation by delivering high-reliability EV BMS assemblies that meet the most demanding requirements of global OEMs and Tier-1 suppliers. Our combination of technical expertise, vertical integration, and customer-focused service ensures that your BMS performs reliably from prototype through high-volume production and throughout the vehicle’s service life.

Your EV platform deserves a BMS assembly partner you can trust.

Contact STHL today — let our experienced team help you design, validate, and manufacture a Battery Management System that drives the future of electric mobility.​

We look forward to supporting your success in the electrified future.
