The Rising Demand for High Layer Count SMT Assembly in 2027

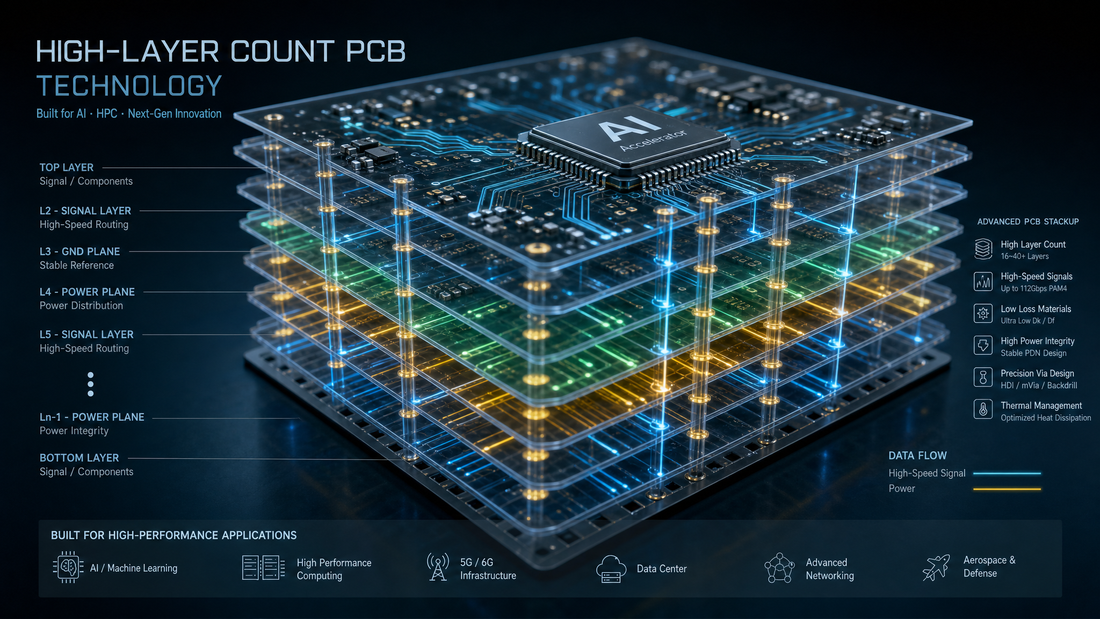

In 2027, the electronics industry continues its relentless push toward greater functionality, higher performance, and extreme miniaturization. High-layer-count printed circuit boards — typically defined as boards with 12, 16, 20, or even 30+ layers — have become essential for advanced applications including AI accelerators, high-speed networking equipment, automotive domain controllers, 5G/6G infrastructure, medical imaging systems, and high-end industrial computing platforms.
These complex multilayer boards enable denser routing, better power integrity, superior signal integrity for multi-gigabit interfaces, and more effective thermal management. However, assembling high-layer-count boards using Surface Mount Technology (SMT) presents unique and significant challenges that go far beyond standard 4–8 layer processes. Issues such as board warpage during reflow, thermal mass variations, precise component placement on dense surfaces, void control under large BGAs, and reliable inspection of hidden joints require specialized equipment, refined processes, and deep engineering expertise.
At STHL, with 18 years of specialized high-reliability PCBA manufacturing experience, we have developed robust capabilities for high-layer-count SMT assembly. Serving OEMs and technology leaders in the United States, Europe, China, and Southeast Asia, STHL is certified to ISO 9001:2015, IATF 16949, ISO 13485, and IPC-A-610 Class 3. Our advanced SMT lines, vacuum reflow systems, precision process controls, and comprehensive inspection platforms enable us to deliver consistent quality on complex multilayer assemblies that meet the most demanding performance and reliability requirements.
Working on a high-layer-count design for AI, networking, or automotive applications in 2027? Contact STHL today for a free DFM review and process capability assessment. Our engineering team can help identify potential assembly risks early and recommend optimized solutions.
Key Technical Challenges in High-Layer-Count SMT Assembly
Board Warpage and Flatness Control
High-layer-count boards possess significant thermal mass and complex copper distribution. During reflow, differential expansion between copper layers, dielectric materials, and components can cause substantial warpage. Excessive warpage leads to open joints, bridging, component misalignment, and reduced first-pass yield.
Mitigation approaches include balanced copper distribution in the stack-up, optimized reflow profiles with controlled ramp rates, nitrogen atmosphere, vacuum reflow for critical packages, and specialized fixturing or carriers during processing.
Thermal Management During Reflow
The high thermal mass of multilayer boards requires carefully engineered reflow profiles. Insufficient peak temperature or time-above-liquidus (TAL) can result in incomplete wetting and voids, while excessive thermal exposure risks component damage or board delamination.
Component Placement Accuracy on Dense Boards
High-layer designs often incorporate fine-pitch BGAs (0.3–0.4 mm), 01005/008004 passives, and high-pin-count packages. Placement systems must deliver exceptional accuracy and repeatability while managing the challenges of board flatness variation.
Void Control Under Large Area Packages
Large BGAs, LGAs, and QFNs on multilayer boards are particularly susceptible to voiding. Vacuum reflow and optimized solder paste printing are essential for achieving acceptable void rates (typically targeting <15% average for Class 3 applications).
Inspection and Verification Complexity
Hidden joints under BGAs and dense component populations require advanced 3D X-ray, 3D AOI, and complementary testing strategies to ensure comprehensive defect coverage.
STHL addresses these challenges through dedicated process development, advanced equipment, and rigorous process control for every high-layer-count program.
Best Practices for Successful High-Layer-Count SMT Assembly in 2027
Design for Manufacturability (DFM) Collaboration
Early engagement between design and manufacturing teams is critical. Key focus areas include:
- Symmetric stack-up design to minimize warpage
- Balanced copper distribution
- Appropriate via structures (including stacked and staggered microvias)
- Adequate thermal relief and via-in-pad strategies
- Component placement that considers thermal mass distribution
Optimized Solder Paste Printing
- Stencil design tailored to board thickness and thermal mass
- 3D SPI verification of paste volume, height, and shape
- Controlled print parameters to ensure consistent deposition
Advanced Reflow Process Control
- Profile development using multiple thermocouples across the board
- Nitrogen atmosphere to improve wetting and reduce oxidation
- Vacuum reflow for large BGA packages to minimize voids
- Real-time monitoring and statistical process control
Comprehensive Inspection Strategy
- 3D SPI after printing
- Pre-reflow and post-reflow 3D AOI
- 3D X-ray for hidden joints with quantitative void analysis
- Functional testing matched to product requirements
Preparing a complex multilayer design for production? Contact STHL — our process engineers can provide detailed DFM feedback and recommend optimized assembly parameters specific to your stack-up and component mix.
Process Capabilities Required for High-Layer-Count Boards
Modern high-layer-count SMT assembly demands equipment and process maturity beyond standard production lines:
- High-accuracy placement systems capable of handling fine-pitch and large packages
- Advanced reflow ovens with precise zone control and vacuum capability
- Robust board handling systems that minimize mechanical stress
- Integrated inspection platforms with closed-loop feedback
STHL’s production infrastructure is specifically configured to support these requirements for both prototype and volume manufacturing.
The table below highlights key process considerations for high-layer-count SMT assembly:
| Process Area | Key Challenge | Best Practice Approach | STHL Capability |
|---|---|---|---|
| Board Handling & Warpage | Thermal expansion and flatness variation | Balanced design + controlled reflow + fixturing | Specialized carriers and process optimization |
| Solder Paste Printing | Consistent volume on thick boards | Optimized stencil + 3D SPI | Closed-loop SPI feedback |
| Reflow Soldering | Thermal mass and void control | Multi-zone profiling + vacuum/nitrogen | Vacuum reflow capability |
| Inspection | Hidden joints and dense populations | 3D AOI + quantitative X-ray | Full inspection suite with data analytics |
Applications Driving High-Layer-Count SMT Demand in 2027
AI and High-Performance Computing
Accelerators and servers require dense routing and excellent power delivery networks that multilayer boards provide.
High-Speed Networking and 5G/6G Infrastructure
Backplanes and line cards demand controlled impedance and high signal integrity across many layers.
Automotive Electronics
Domain controllers, ADAS systems, and power electronics benefit from the density and thermal performance of high-layer designs.
Medical and Industrial Systems
Imaging equipment, advanced sensors, and industrial controllers increasingly rely on complex multilayer architectures.
STHL supports customers across these sectors with processes proven on demanding high-layer programs.
Quality Assurance and Reliability Considerations
High-layer-count assemblies demand elevated quality standards. STHL applies IPC-A-610 Class 3 criteria as a baseline for high-reliability programs, supported by:
- Rigorous process validation
- Comprehensive first-article inspection
- Statistical process control
- Full material and process traceability
These practices help ensure consistent performance throughout the product lifecycle.
Partnering with STHL for High-Layer-Count SMT Assembly Excellence
Successfully assembling high-layer-count boards requires more than standard SMT capability. It demands specialized process knowledge, advanced equipment, disciplined engineering support, and a quality culture focused on continuous improvement.
STHL combines these elements to deliver reliable results on complex multilayer PCBA programs. Our team works closely with customers from design review through production ramp, helping mitigate risks and achieve first-pass success.
Your high-layer-count design deserves manufacturing expertise matched to its complexity.
Contact STHL today — share your stack-up and component requirements so our engineers can provide a detailed capability assessment and process recommendation tailored to your project.
We are prepared to support the successful realization of your most advanced multilayer assemblies.
