In 2026, PCBA (Printed Circuit Board Assembly) quality remains the single most critical factor determining product reliability, warranty costs, field failure rates, and brand reputation. As designs become denser (01005 passives, 0.3 mm pitch BGAs, HDI microvias), power levels increase (heavy copper, SiC/IGBT modules), and regulatory scrutiny intensifies (AEC-Q100, ISO 13485, IPC-A-610 Class 3, CBAM/ESG reporting), a robust PCBA quality audit checklist is no longer optional — it is a competitive necessity.

At STHL, with 18 years of high-reliability PCBA manufacturing experience, we have refined our internal quality audit processes to consistently achieve defect rates below 100 PPM and first-pass yield >99.5% across automotive, medical, industrial IoT, aerospace, and renewable energy programs. Serving customers in the United States, Europe, China, and Southeast Asia, STHL is certified to ISO 9001:2015, IATF 16949, ISO 13485, and IPC-A-610 Class 3. This 2026-updated PCBA quality audit checklist guide provides a practical, actionable framework you can implement immediately — whether you are an OEM auditing suppliers or an EMS provider strengthening internal controls.

Pre-Production PCBA Quality Audit Checklist

Incoming Material & Component Verification

Verify all incoming materials against the approved BOM and AVL (Approved Vendor List).

• Component authenticity (COA, date/lot code, MSL level)
• RoHS/REACH compliance certificates
• Visual inspection for damage, moisture bag integrity
• Sample dimensional & electrical verification (for critical parts)

STHL performs 100% lot-code traceability and counterfeit screening on every inbound shipment.

PCB Fabrication Audit Points

Confirm bare board quality before assembly:

• Cross-section analysis (plating thickness, via fill)
• Impedance coupon testing (if controlled impedance)
• Solder mask adhesion & thickness
• Surface finish (ENIG, OSP, immersion tin)
• Bow & twist, dimensional accuracy

STHL’s in-house fab ensures all boards pass these checks before release to assembly.

Want to strengthen your supplier audit process? Contact STHL today — our team can share our proven incoming material & bare board audit templates and best practices.

In-Process PCBA Quality Audit Checklist

Solder Paste Printing & SPI Inspection

Critical first step — poor paste deposition causes 40–50% of reflow defects.

• Stencil cleanliness & tension check
• Print pressure, speed, snap-off distance
• 3D SPI results: volume, height, area, shape, offset (typical limits ±50% volume, ±75 μm position)
• Paste type & expiration verification

STHL uses Koh Young Zenith 2 3D SPI with closed-loop feedback to printer adjustments.

Component Placement Accuracy

Misplacement is the second leading cause of assembly defects.

• Placement accuracy (±25–40 μm for chip shooters)
• Vision alignment verification
• Polarity & orientation check (especially for LEDs, diodes, polarized caps)
• Nozzle condition & feeder calibration

STHL’s Yamaha and Fuji lines achieve placement accuracy suitable for 01005 and 0.3 mm pitch BGAs.

Reflow Soldering Profile Audit

The reflow profile directly determines solder joint integrity.

• Preheat ramp rate (1–3°C/s)
• Soak time & temperature (150–200°C)
• Peak temperature & TAL (time above liquidus)
• Cooling rate (2–4°C/s)
• Nitrogen atmosphere usage for low-void large BGAs

STHL records and archives every profile with thermocouple verification.

Concerned about reflow defects or void rates? Reach out to STHL — we can provide a free reflow profile review and optimization consultation.

Post-Assembly PCBA Quality Audit Checklist

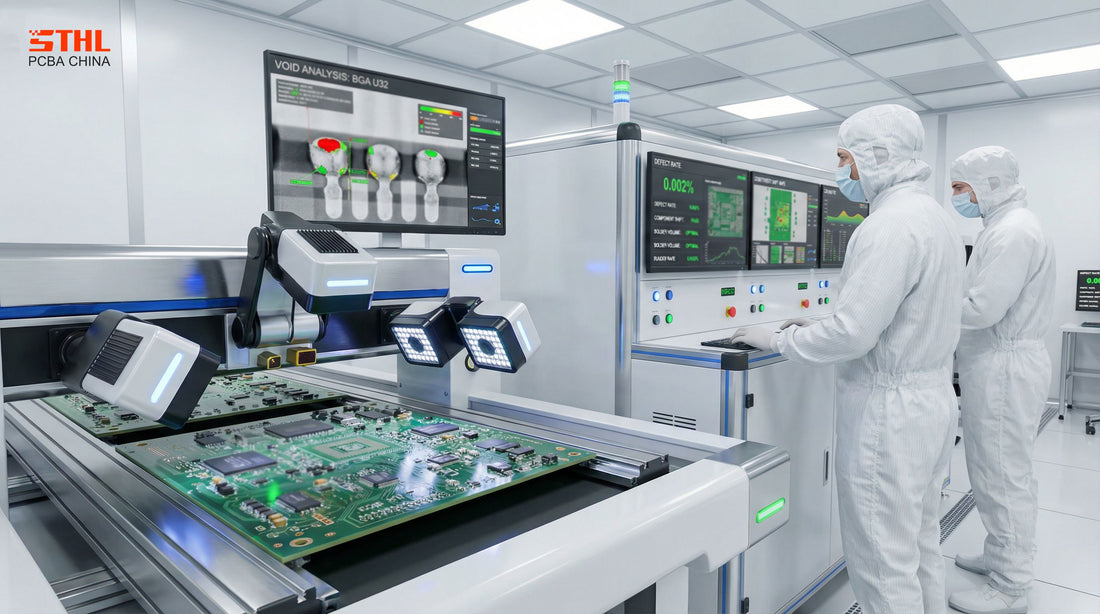

Automated Inspection (AOI & X-ray)

Post-reflow inspection catches defects before functional test.

• 3D AOI for component presence, polarity, tombstoning, bridging, insufficient solder
• 3D X-ray for BGA/QFN/LGA void percentage (<25% typical), head-in-pillow, non-wet opens

STHL deploys Koh Young and Omron 3D AOI/X-ray systems with AI-assisted judgment.

Functional & In-Circuit Testing

Verify the assembled board performs as designed.

• ICT (bed-of-nails or flying probe) for component values and connectivity
• FCT (functional test) in simulated operating environment
• Boundary scan (JTAG) for high-density digital boards
• Burn-in / stress screening for high-reliability programs

STHL develops custom FCT fixtures and programs for every project.

Final Visual & Mechanical Inspection

• Solder joint cosmetic quality
• Conformal coating uniformity (if applied)
• Mechanical assembly (connectors, heat sinks, screws)
• Labeling, packaging integrity

The table below summarizes the most critical audit checkpoints:

Implementing an Effective PCBA Quality Audit Checklist

Build a Layered Audit System

Combine automated (SPI/AOI/X-ray) with human visual and statistical sampling.

Train & Certify Inspectors

IPC-A-610 Certified IPC Specialist (CIS) training for all inspectors.

Use Real-Time SPC & 8D Problem Solving

Track defects in real time and drive root-cause corrective actions.

Conduct Regular Supplier Audits

Audit bare board and component suppliers annually.

STHL’s layered quality system consistently delivers >99.5% first-pass yield and <100 PPM field returns.

Want to benchmark your current PCBA quality process? Contact STHL — we’ll share our audit checklist template and best practices.

Partner with STHL for World-Class PCBA Quality in 2026

In 2026, PCBA quality is not just about meeting specifications — it is about preventing field failures, protecting brand reputation, and minimizing warranty costs. A comprehensive, layered quality audit checklist executed by a disciplined manufacturing partner is the foundation of success.

STHL has spent 18 years refining exactly that discipline — combining advanced process capability, rigorous inspection, full traceability, and continuous improvement to deliver PCBAs that perform reliably in the most demanding applications.

Your products deserve uncompromising quality. Reach out to STHL today — let our team demonstrate how 18 years of relentless focus on zero defects can protect your brand and accelerate your success.

We’re ready to earn your confidence — one perfectly assembled board at a time.
