As electronic devices pack more functionality into smaller footprints, printed circuit boards have responded by growing not wider, but deeper. Backplanes, server motherboards, aerospace avionics, and 5G infrastructure boards routinely exceed 20 layers today, and some advanced designs push past 32. While layer count solves a designer's routing and signal-integrity problems, it introduces an entirely different set of challenges once the board reaches the assembly floor. SMT Assembly for High-Layer-Count Boards (20+ Layers) is no longer a niche capability — it is a core requirement for manufacturers serving telecom, industrial, medical, and defense markets.

This article examines why high-layer-count boards behave differently under reflow, what process adjustments are required to assemble them successfully, and how STHL applies engineering discipline to keep yield high on some of the industry's most demanding builds.

Why High-Layer-Count Boards Demand a Different SMT Approach

A six-layer consumer board and a 24-layer networking backplane may share the same component packages, yet the assembly behavior of the two is worlds apart. Layer count changes the board's thermal mass, mechanical rigidity, and copper distribution — all of which directly affect how the board responds inside a reflow oven.

Thermal Mass and Copper Distribution

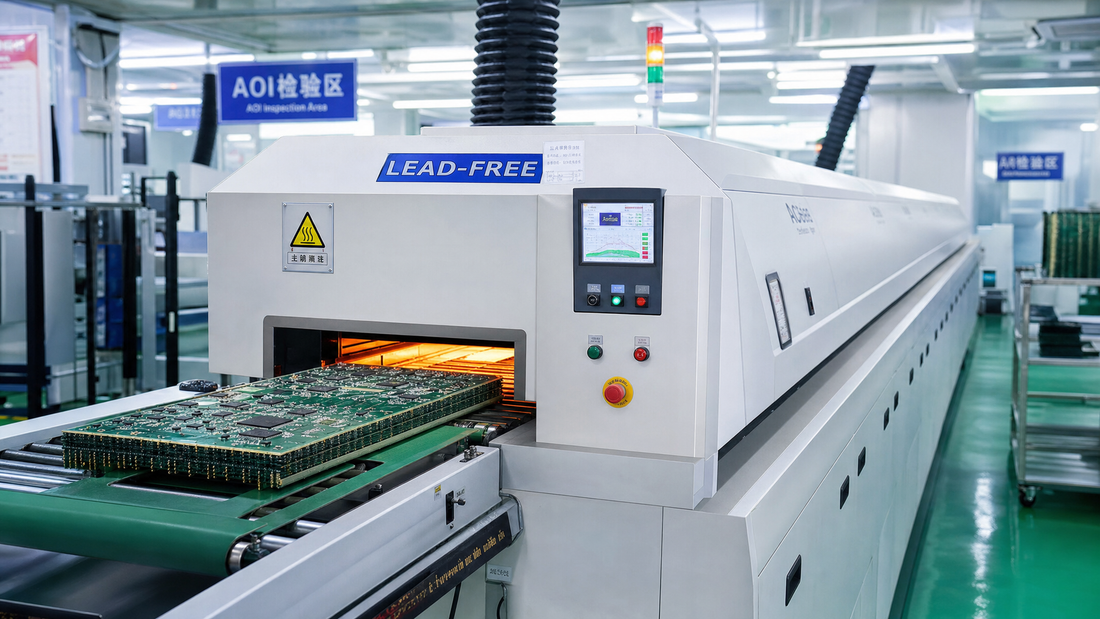

Every additional copper layer adds thermal mass that the reflow oven must heat evenly before the solder paste reaches its liquidus point. Boards with uneven copper density — heavy ground planes on some layers and sparse routing on others — heat unevenly, creating localized cold zones that lead to insufficient wetting, and hot zones that risk component or laminate damage. On a 20+ layer board, this imbalance is magnified because the internal layers act as heat sinks, slowing thermal transfer to the surface where components sit.

Warpage and Dimensional Stability

Thick, high-layer-count boards are also more prone to warpage during reflow, particularly with large BGA or QFN packages that require flat, stable surfaces for reliable solder joint formation. A board measuring 4–5 mm thick behaves very differently under thermal load than a standard 1.6 mm board, and even small deviations in coplanarity can produce head-in-pillow defects, open joints, or intermittent connections that are notoriously difficult to detect after assembly.

Key SMT Process Adjustments for 20+ Layer Boards

Successfully assembling a high-layer-count board is not a matter of running the standard SMT recipe at a slightly higher temperature. It requires deliberate process engineering at multiple stages.

Reflow Profile Engineering

A dedicated reflow profile must be developed for each high-layer-count design, accounting for thermocouple placement, soak time, time-above-liquidus (TAL), and ramp rates specific to the board's thickness and copper distribution. Process engineers typically run multiple thermal profile trials — measuring temperature at several points across the board — before committing to a production-ready profile. Boards with mixed component types (fine-pitch BGAs alongside heavier connectors) often require a compromise profile that satisfies the thermal needs of both without overheating either.

Stencil Design and Solder Paste Printing

Thicker boards with dense via-in-pad structures and mixed pitch components demand careful stencil design. Aperture size, pad reduction ratios, and step-down stencils are used to manage solder paste volume differently across a single board — enough paste for larger connector pads without excess bridging risk on fine-pitch components nearby. Consistent solder paste printing becomes even more critical on high-layer-count boards, since rework on a dense, expensive multilayer substrate is costly and time-consuming.

Via-in-Pad and Microvia Considerations

Many high-layer-count boards use via-in-pad or microvia structures to maintain routing density. If these vias are not properly filled and capped, trapped air or flux can escape during reflow, causing solder voiding beneath components — a defect that is particularly damaging under high-current or high-frequency parts where thermal and electrical performance depend on solid, void-free joints.

Inspection and Quality Control for Complex Multilayer Assemblies

Because defects in high-layer-count assemblies are often hidden beneath components or inside multilayer structures, inspection strategy must go beyond what standard boards require.

AOI, SPI, and X-ray Inspection Layers

Solder Paste Inspection (SPI) immediately after printing confirms paste volume and placement accuracy before components are ever mounted, catching print defects before they compound into soldering failures. Automated Optical Inspection (AOI) then verifies component placement and orientation. For high-layer-count boards populated with BGAs, QFNs, or other hidden-joint packages, X-ray inspection — including selective or full automated X-ray inspection (AXI) — becomes essential for confirming solder joint integrity and detecting voiding that cannot be seen from the surface.

Managing Aspect Ratio and Plating Risks

High-layer-count boards frequently carry high aspect ratio vias, where plating quality directly affects long-term reliability. During the intense heat of reflow, thin or incomplete copper plating inside a via barrel can crack under thermal expansion, producing an intermittent open circuit that may not appear until the product is already in the field. Coordinating closely with the PCB fabrication stage — confirming plating quality and via structure before parts ever reach the SMT line — is one of the most effective ways to prevent this class of failure.

How STHL Delivers Precision SMT Assembly for High-Layer-Count Boards

At STHL, high-layer-count assembly is treated as a distinct engineering discipline rather than an extension of standard SMT production. Our process team develops custom reflow profiles for every complex multilayer design, validates stencil parameters against each board's specific pad geometry, and applies a full inspection stack — SPI, AOI, and X-ray — tuned to the risk profile of the components involved. Close coordination with our PCB fabrication partners ensures via plating and board flatness meet the standards required before a board ever reaches the SMT line, reducing the chance of hidden defects surfacing after assembly.

Working on a design that pushes past 20 layers? Reach out to STHL's engineering team to discuss your thermal profile requirements, stencil design, and inspection strategy before your build reaches production.

Preparing Your High-Layer-Count Design for Successful SMT Assembly

Getting a 20+ layer board through SMT assembly without defects takes more than a capable reflow oven — it takes a manufacturing partner who understands how thermal mass, copper distribution, and via structure interact under real production conditions. Engaging your assembly partner during the design phase, rather than after fabrication is complete, gives engineers the chance to flag thermal risk areas, adjust stencil design, and plan inspection coverage before the first board ever enters the oven.

High-layer-count boards will only become more common as devices demand greater density and performance in smaller spaces. The manufacturers who invest in the process engineering these boards require today will be the ones delivering reliable products at scale tomorrow — and that engineering conversation is one STHL is always ready to have.
