The Rising Demand for Rigid-Flex PCBA in 2026

In 2026, rigid-flex PCB assembly has firmly established itself as a critical technology for high-performance, space-constrained, and high-reliability electronic products. By combining the best attributes of rigid and flexible circuits into a single integrated solution, rigid-flex PCBA eliminates connectors, reduces weight, improves signal integrity, increases mechanical reliability, and enables three-dimensional packaging that traditional rigid boards simply cannot achieve.

This hybrid technology is now widely adopted across multiple high-growth sectors, including:

• Foldable and rollable consumer electronics
• Wearable medical devices and implantable electronics
• Automotive ADAS, LiDAR, and in-vehicle infotainment systems
• Aerospace and defense avionics
• Industrial robotics and drone systems
• 5G/6G RF modules and high-speed networking equipment

The ability to bend, fold, and dynamically flex while maintaining electrical performance and long-term reliability makes rigid-flex PCBA the preferred choice when size, weight, and durability are non-negotiable.

At STHL, with 18 years of specialized rigid-flex PCBA manufacturing experience, we have become a trusted partner for OEMs and contract manufacturers in the United States, Europe, China, and Southeast Asia. Certified to ISO 9001:2015, IATF 16949, ISO 13485, and IPC-A-610 Class 3, STHL offers full-turnkey rigid-flex PCBA services — from design support and material selection through fabrication, assembly, testing, and final integration. Our dedicated rigid-flex production lines and experienced engineering team consistently deliver complex multilayer rigid-flex designs with high first-pass yields and excellent long-term reliability.

Designing a compact, dynamic, or high-reliability product that requires rigid-flex technology? Contact STHL today for a free DFM review and stack-up consultation — our engineers can help you optimize your rigid-flex design for manufacturability, cost, and performance.

What Is Rigid-Flex PCBA and How It Works

Rigid-flex PCBA is a hybrid circuit board that integrates rigid PCB sections with flexible polyimide circuits into one inseparable unit. The flexible portions act as “hinges” or “cables,” allowing the board to bend, fold, or twist while maintaining electrical connectivity between rigid sections.

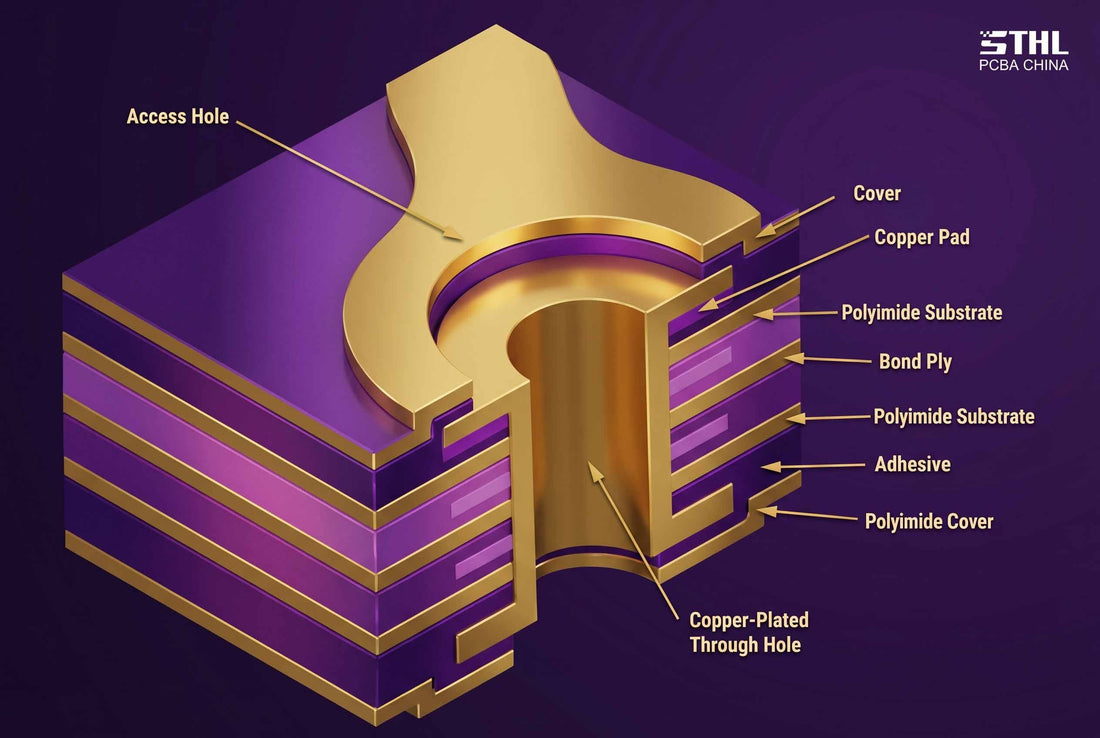

Key Construction Elements

• Rigid Zones: FR-4, high-Tg FR-4, or high-frequency materials (Rogers, Megtron) for component mounting and mechanical support.
• Flexible Zones: Polyimide (PI) film (typically 1–3 mils thick) with rolled annealed copper for excellent bendability and fatigue resistance.
• Coverlay: Polyimide film with adhesive that protects the flexible circuitry.
• Stiffeners: Additional rigid material added to connector or component areas for mechanical support.
• Plated Through Holes (PTH) and Microvias: Used to interconnect rigid and flex layers.
• Adhesive Layers: Used to bond rigid and flex sections during lamination.

Modern rigid-flex designs in 2026 commonly feature:

• 4–16 rigid layers + 2–6 flex layers
• Blind, buried, and stacked microvias
• Via-in-pad technology
• Controlled impedance routing (50Ω, 100Ω differential pairs)
• Heavy copper in rigid zones for power distribution

STHL routinely manufactures complex rigid-flex boards with up to 12 rigid layers and 4 flex layers, supporting both static and dynamic flex applications.

Major Advantages of Rigid-Flex PCBA in 2026

Significant Size and Weight Reduction

By eliminating bulky connectors and cables, rigid-flex designs can reduce overall product size and weight by 30–70% compared to traditional rigid + cable solutions.

Improved Signal Integrity and Reliability

Shorter signal paths and fewer interconnect points dramatically reduce parasitic inductance, capacitance, and signal loss — especially important for high-speed digital and RF applications.

Enhanced Mechanical Reliability

Fewer connectors mean fewer failure points. Rigid-flex circuits can withstand millions of flex cycles when properly designed, making them ideal for dynamic applications such as foldable phones, robotic arms, and medical endoscopes.

Better Thermal Management

Strategic placement of heavy copper layers in rigid zones and optimized thermal vias allow efficient heat dissipation in compact packages.

Simplified Assembly and Higher Yield

Fewer manual soldering operations and connectors result in reduced assembly time, lower labor costs, and higher manufacturing yield.

Looking to reduce size, weight, and failure points in your next design? Contact STHL — our rigid-flex experts can help you convert your current rigid + cable design into a more reliable and compact rigid-flex solution.

Technical Challenges in Rigid-Flex PCBA Manufacturing and Assembly

Material Compatibility and CTE Mismatch

Different expansion rates between rigid FR-4 and flexible polyimide can cause delamination or cracking during thermal cycling.

STHL Solution: Use of matched low-CTE materials, controlled lamination processes, and extensive thermal cycling validation.

Bend Radius and Flex Fatigue

Improper bend radius design leads to copper cracking and circuit failure after repeated flexing.

STHL Solution: Strict adherence to IPC-2223 bend radius guidelines and dynamic flex testing during qualification.

Layer Registration and Alignment

High-layer-count rigid-flex boards require extremely tight registration between rigid and flex layers.

STHL Solution: Laser direct imaging (LDI), precision alignment fixtures, and statistical process control.

Plated Through Hole Reliability

Vias at the rigid-flex transition zone are prone to stress and cracking.

STHL Solution: Use of teardrop pads, filled vias, and reinforced transition zones.

Assembly Challenges

Component placement on flexible areas requires special fixturing and low-force placement to avoid damaging the flex circuit.

STHL uses dedicated rigid-flex assembly lines with custom pallets and low-force placement heads.

Design Guidelines and Best Practices for Rigid-Flex PCBA in 2026

Stack-Up Design

• Minimize the number of flex layers (ideally 2 or 4)
• Place high-density components on rigid zones
• Use symmetric stack-ups to reduce warpage
• Incorporate ground planes adjacent to signal layers for impedance control

Bend Area Design

• Keep bend areas free of components
• Use hatched or cross-hatched ground planes in flex zones to improve flexibility
• Maintain minimum bend radius according to IPC-2223 (typically 6–10× flex thickness for dynamic flex)

Via Placement

• Avoid placing vias directly in the bend area
• Use staggered or stacked microvias in rigid zones
• Reinforce transition zones with additional coverlay or stiffeners

STHL’s engineering team provides comprehensive DFM feedback to ensure your rigid-flex design is both high-performing and highly manufacturable.

STHL’s Advanced Rigid-Flex PCBA Manufacturing Capabilities

STHL offers complete turnkey rigid-flex PCBA services, including:

• Fabrication: Up to 16 rigid layers + 6 flex layers, HDI microvias, blind/buried vias, and heavy copper integration.
• Material Expertise: High-Tg FR-4, Rogers high-frequency laminates, and aerospace-grade polyimide.
• Assembly: Dedicated rigid-flex SMT/THT lines with low-force placement and custom fixturing.
• Testing: 3D SPI/AOI/X-ray, ICT/FCT, impedance testing, thermal cycling, and dynamic flex testing.
• Quality System: Full traceability, change control, and documentation packages for automotive and medical customers.

Our rigid-flex production lines are optimized for both quick-turn prototyping and volume production, delivering consistent quality and on-time delivery.

Ready to bring your rigid-flex design into production? Submit your files to STHL today — receive expert DFM feedback and a firm quotation within 24 hours.

Why Choose STHL as Your Rigid-Flex PCBA Partner in 2026

STHL combines deep technical expertise in rigid-flex design and manufacturing with a strong quality culture and customer-focused service. Our advantages include:

• 18 years of continuous rigid-flex experience
• In-house PCB fabrication and assembly for better control and faster lead times
• Proven track record with automotive, medical, and industrial customers
• Full compliance with IATF 16949, ISO 13485, and IPC Class 3 standards
• Comprehensive testing and validation capabilities

Whether you need a simple 4-layer rigid-flex prototype or a complex 12+ layer dynamic flex assembly for high-volume production, STHL has the capability and experience to deliver.

Final Thoughts: Partnering for Success in the Era of Flexible Electronics​

The electronics industry in 2026 is increasingly defined by products that must be smaller, lighter, more reliable, and more flexible than ever before. Rigid-flex PCBA technology is at the forefront of this transformation, enabling innovative form factors and improved performance that were impossible with traditional rigid boards.

Choosing the right manufacturing partner is critical to turning your rigid-flex design concept into a reliable, high-yield, and cost-effective product. STHL stands ready as that partner — offering deep technical knowledge, advanced manufacturing capabilities, rigorous quality systems, and a genuine commitment to your success.

Let’s build the future of flexible electronics together.

Contact STHL today and discover how our rigid-flex PCBA expertise can help bring your most ambitious product designs to life — on time, on budget, and with uncompromising quality. We look forward to being part of your next innovation.
