Understanding Blind and Buried Vias: Definitions and Technical Differences

Blind Vias

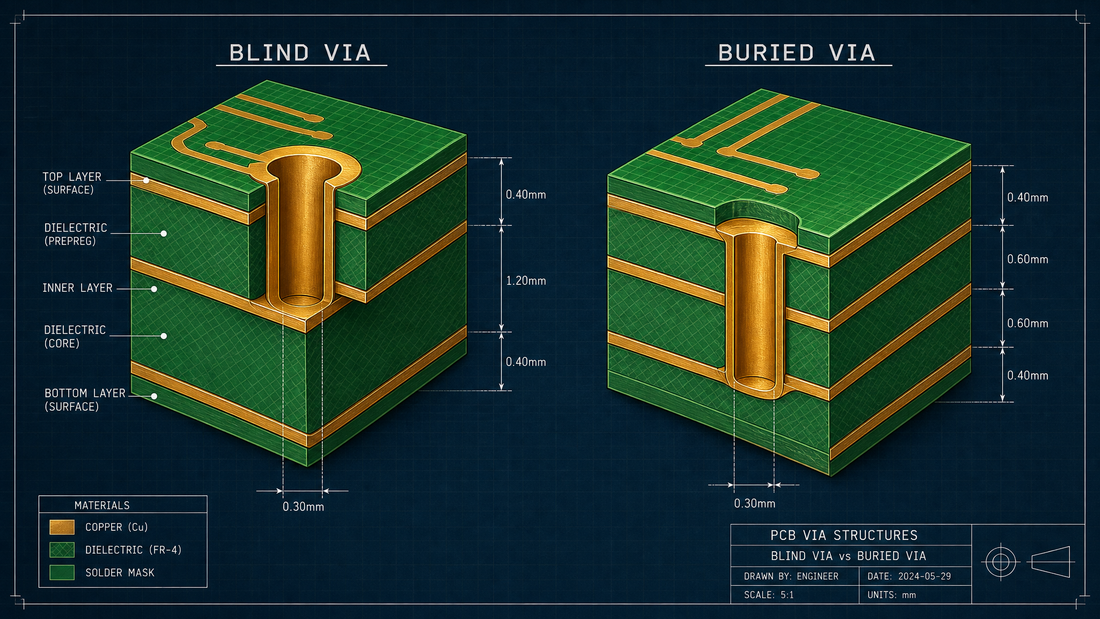

A blind via starts from an outer layer (top or bottom) and terminates at an inner layer without going through the entire board. Blind vias significantly increase routing density on outer layers while preserving real estate on the opposite side for component placement.

Buried Vias

A buried via connects only internal layers and is not visible from either outer surface. Buried vias are particularly valuable for creating complex inner-layer routing without interfering with surface component placement or signal integrity on outer layers.

Stacked vs Staggered Vias

• Stacked Vias: Microvias stacked directly on top of each other, offering maximum density but requiring precise registration and more manufacturing steps.
• Staggered Vias: Offset vias that are easier to manufacture but consume slightly more space.

STHL routinely produces both stacked and staggered blind/buried vias structures, supporting up to 16+ layers with multiple lamination cycles and laser-drilled microvias as small as 0.05–0.1 mm in diameter.

Major Advantages of Blind and Buried Vias Assembly in 2026

Higher Routing Density and Miniaturization

Blind and buried vias allow designers to route signals on inner layers while keeping outer layers free for dense component placement. This often results in 30–60% smaller board size compared to conventional through-hole designs.

Improved Signal Integrity and High-Speed Performance

Shorter via stubs reduce signal reflection, crosstalk, and impedance discontinuities — critical for PCIe 6.0, DDR5, 5G/6G RF, and high-speed SERDES applications.

Better EMI/EMC Performance

Buried vias and ground planes on inner layers create superior shielding, reducing radiated emissions and improving immunity.

Enhanced Thermal Management

Via-in-pad and stacked vias improve heat transfer from high-power components to inner copper planes or external heat sinks.

Increased Mechanical Reliability

Fewer through-hole vias reduce the risk of plated through-hole (PTH) cracking under thermal cycling and vibration, which is especially important for automotive and aerospace applications.
