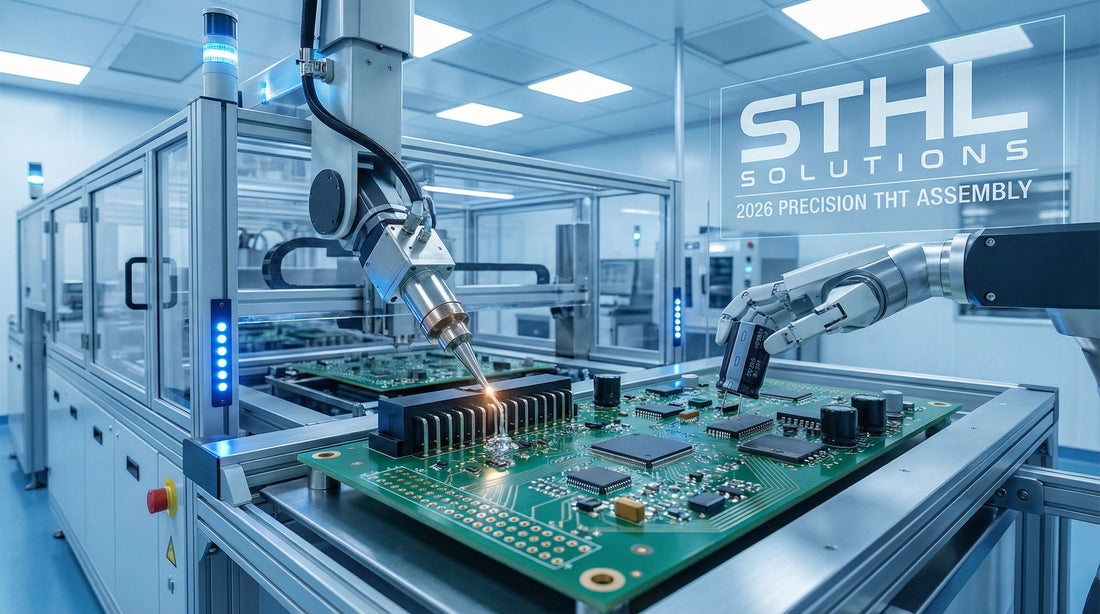

Through Hole PCB Assembly in 2026: Essential Techniques for High-Reliability Designs
- The Enduring Role of THT Assembly in Modern Electronics
- Core Process Steps in THT PCB Assembly
- Component Preparation and Insertion
- Wave Soldering for High-Volume Production
- Selective Soldering for Mixed Boards
- Post-Assembly Inspection and Testing
- Critical Design Rules for THT Assembly Success
- Hole Size and Tolerance Specifications
- Pad Dimensions and Annular Ring
- Lead Forming and Spacing Guidelines
- Solder Mask and Silkscreen Best Practices
- Advantages of THT Assembly in 2026 Applications
- Superior Mechanical Reliability
- High-Power and High-Voltage Handling
- Field Serviceability and Prototyping Ease
- Hybrid Integration with SMT
- Challenges and Solutions in THT Assembly
- Thermal Stress on Mixed Boards
- Solder Fill and Joint Quality Issues
- Higher Costs and Slower Throughput
- THT Assembly Trends and Innovations for 2026
- Rise of Selective and Robotic Soldering
- Integration with Advanced Materials
- Hybrid THT-SMT for High-Reliability Sectors
- Sustainability Focus
- Quality Standards and Testing in THT Assembly
- Partnering with STHL for THT PCB Assembly Excellence
- Future-Proof Your Designs with THT Mastery
- Elevate Your THT Projects with STHL Today!
The Enduring Role of THT Assembly in Modern Electronics
In 2026, while Surface-Mount Technology (SMT) dominates high-volume consumer and mobile applications, Through Hole PCB Assembly (THT) remains indispensable for high-reliability sectors demanding mechanical strength, thermal resilience, and serviceability. THT involves inserting component leads through drilled holes in the PCB and soldering them on the opposite side, providing robust joints that withstand vibration, shock, and thermal cycling—critical for automotive, aerospace, industrial power, medical devices, and defense systems.
At STHL, with 18 years of specialized THT and mixed-technology assembly experience, we operate dedicated wave soldering lines, selective soldering systems (ERSA Powerflow, SEHO), and robotic hand-assembly stations alongside our high-speed SMT capabilities. Certified to ISO 9001:2015, IATF 16949, IPC-A-610 Class 3, and J-STD-001, STHL serves OEMs in the United States, Europe, China, and Southeast Asia with hybrid boards that combine THT's durability with SMT's density. This guide explores THT assembly processes, design rules, advantages, challenges, and 2026 trends, equipping engineers with actionable insights for optimal manufacturing.
Core Process Steps in THT PCB Assembly
THT assembly follows a precise sequence to ensure joint integrity and board reliability.
Component Preparation and Insertion
Leaded components (axial, radial, or DIP) are pre-formed if needed, with leads bent to fit hole tolerances. Automated insertion machines or manual placement ensure alignment, with fiducials aiding precision.
Wave Soldering for High-Volume Production
Boards travel over a molten solder wave (typically SAC305 alloy at 250–260°C), where flux activates and solder flows through holes, forming fillets on both sides. Nitrogen atmosphere reduces oxidation for brighter joints.
Selective Soldering for Mixed Boards
Mini-wave nozzles target specific THT pins, minimizing heat exposure to nearby SMT components. Ideal for 2026's hybrid designs in automotive ECUs and medical controllers.
Post-Assembly Inspection and Testing
Visual AOI checks fillet formation (75% hole fill minimum for Class 2/3), followed by X-ray for hidden voids and ICT for continuity.
STHL's selective soldering achieves >99.5% first-pass yield on mixed-technology boards.
Planning a THT project? Contact STHL for expert process consultation and free DFM review. Ensure your design succeeds from the start!
Critical Design Rules for THT Assembly Success
Adhering to IPC-2221 and IPC-7351 standards prevents common defects.
Hole Size and Tolerance Specifications
Hole diameter = max lead diameter + clearance (0.25 mm for density A, 0.20 mm B, 0.15 mm C). Aspect ratio ≤10:1 for reliable plating.
Pad Dimensions and Annular Ring
Pad diameter = hole size + 0.1 mm + fab tolerance (0.6 mm A, 0.5 mm B, 0.4 mm C). Minimum annular ring 0.15 mm finished for strength.
Lead Forming and Spacing Guidelines
Radial leads perpendicular to board; axial leads straight. Minimum spacing 0.76 mm (30 mils) between components.
Solder Mask and Silkscreen Best Practices
4 mil relief between mask and pads; central reference designators with Pin 1 indicators.
The table below summarizes key THT design rules:
| Parameter | Density Level A | Density Level B | Density Level C |
|---|---|---|---|
| Hole Clearance | 0.25 mm | 0.20 mm | 0.15 mm |
| Pad Annular Ring | 0.6 mm | 0.5 mm | 0.4 mm |
| Min Spacing | 0.76 mm | 0.51 mm | 0.38 mm |
STHL enforces these rules in every DFM review, reducing rework by 70%.
Advantages of THT Assembly in 2026 Applications
Superior Mechanical Reliability
THT joints offer 3–5x higher shear strength than SMT fillets, ideal for vibration-heavy environments like rail signaling and aerospace avionics.
High-Power and High-Voltage Handling
Supports large electrolytics (>1000 μF), TO-220 packages, and terminal blocks for >400V/10A circuits in EV chargers and industrial drives.
Field Serviceability and Prototyping Ease
Easy desoldering with standard irons; breadboard compatibility for rapid prototyping.
Hybrid Integration with SMT
THT for power/heavy parts + SMT for logic/signals in modern ECUs and medical monitors.
Challenges and Solutions in THT Assembly
Thermal Stress on Mixed Boards
SMT components risk damage from wave heat. Solution: Selective soldering with localized preheat.
Solder Fill and Joint Quality Issues
Insufficient fill (<75%) or icicles. Solution: Optimized flux ratios, nitrogen wave, post-AOI verification.
Higher Costs and Slower Throughput
THT is 2–4x slower than SMT. Solution: Automate insertion where possible; hybrid designs minimize THT volume.
STHL's robotic selective soldering cuts mixed-board cycle time by 40%.
Overcoming THT challenges? Partner with STHL for hybrid assembly expertise. Request a free process audit today!
THT Assembly Trends and Innovations for 2026
Rise of Selective and Robotic Soldering
Nitrogen mini-wave and laser soldering dominate, enabling precise THT on high-density SMT boards.
Integration with Advanced Materials
THT in heavy copper (4–8 oz) and metal-core PCBs for EV powertrains and LED drivers.
Hybrid THT-SMT for High-Reliability Sectors
Automotive (EN 50155 rail), medical (IEC 60601), and defense (MIL-STD-810) favor mixed tech.
Sustainability Focus
Lead-free SAC305 alloys and recyclable flux; STHL's processes achieve 95% material recovery.
Quality Standards and Testing in THT Assembly
Adherence to IPC-A-610 Class 3 ensures joint fillet height ≥75% hole fill, smooth meniscus, and no cracks. STHL performs:
- Visual/AOI for surface defects
- X-ray for PTH voids
- Cross-section analysis for microstructure
- Pull/shear testing for mechanical strength
Partnering with STHL for THT PCB Assembly Excellence
STHL excels in THT with:
- ERSAS/SEHO selective soldering (nitrogen-capable)
- Automated lead forming/insertion
- Mixed-technology capability (SMT-first flow)
- Full traceability and SPC monitoring
Serving high-reliability markets, we deliver <50 PPM defects and 100% on-time.
Need THT assembly for your 2026 project? Contact STHL for tailored solutions and rapid prototyping.
Future-Proof Your Designs with THT Mastery
Through Hole PCB Assembly in 2026 bridges legacy reliability with modern hybrid demands, ensuring durable electronics for power, automotive, and industrial applications. Proper design rules, selective processes, and expert partnership minimize risks and maximize performance.
Elevate Your THT Projects with STHL Today!
Contact STHL’s engineering team for a free DFM review, hybrid assembly quote, and process consultation.
18 Years • Global Delivery • Reliability Guaranteed
